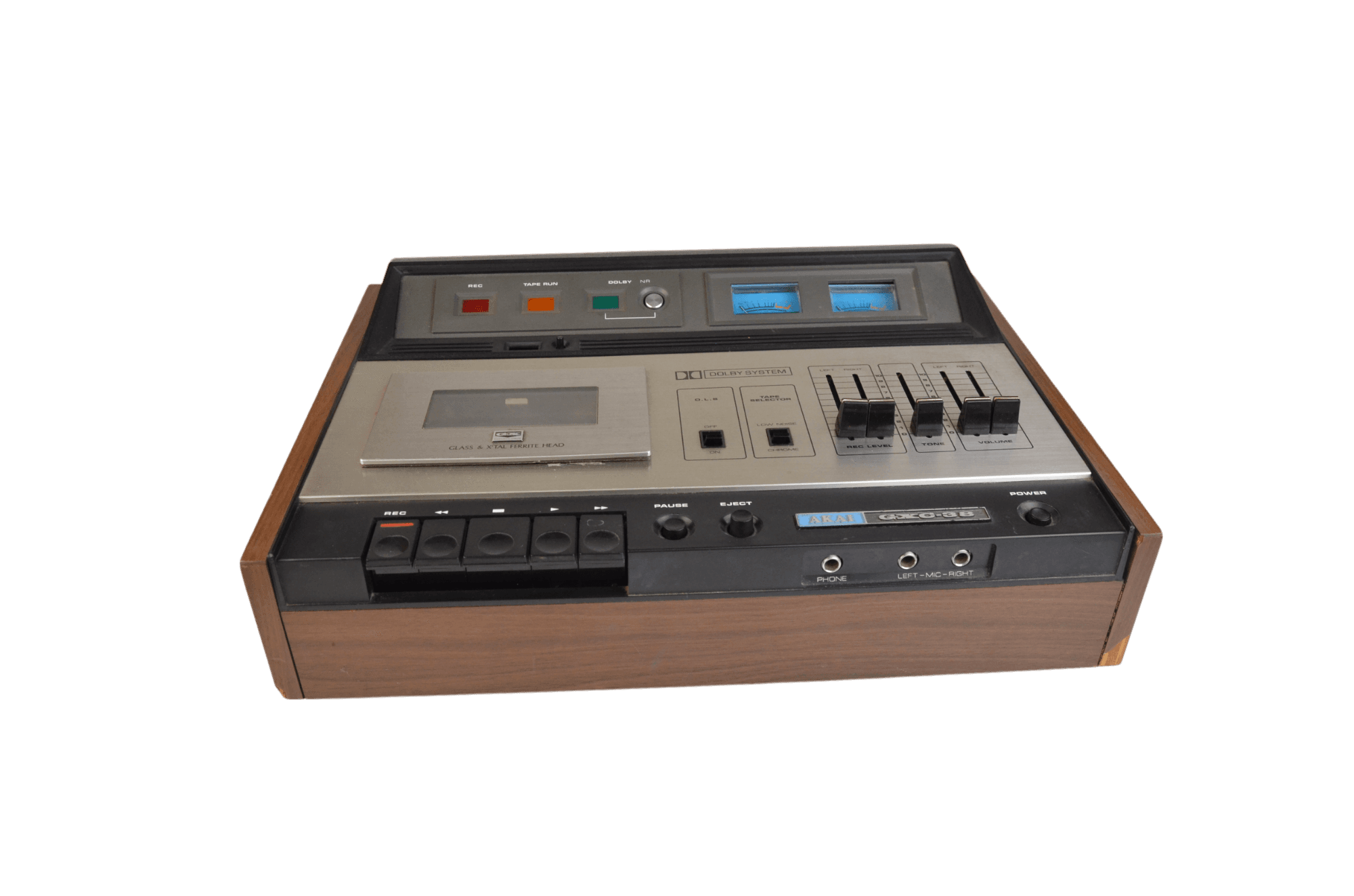

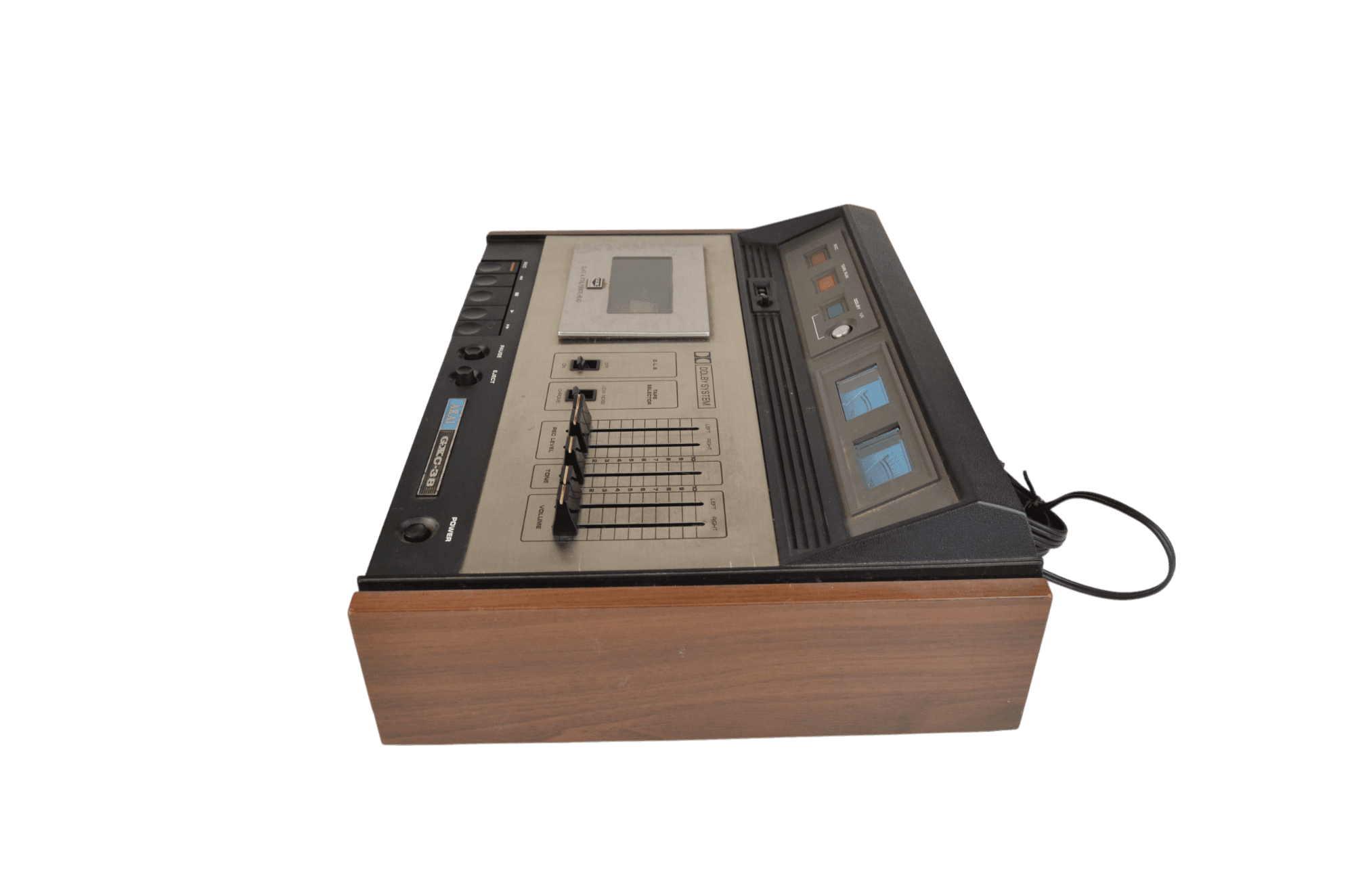

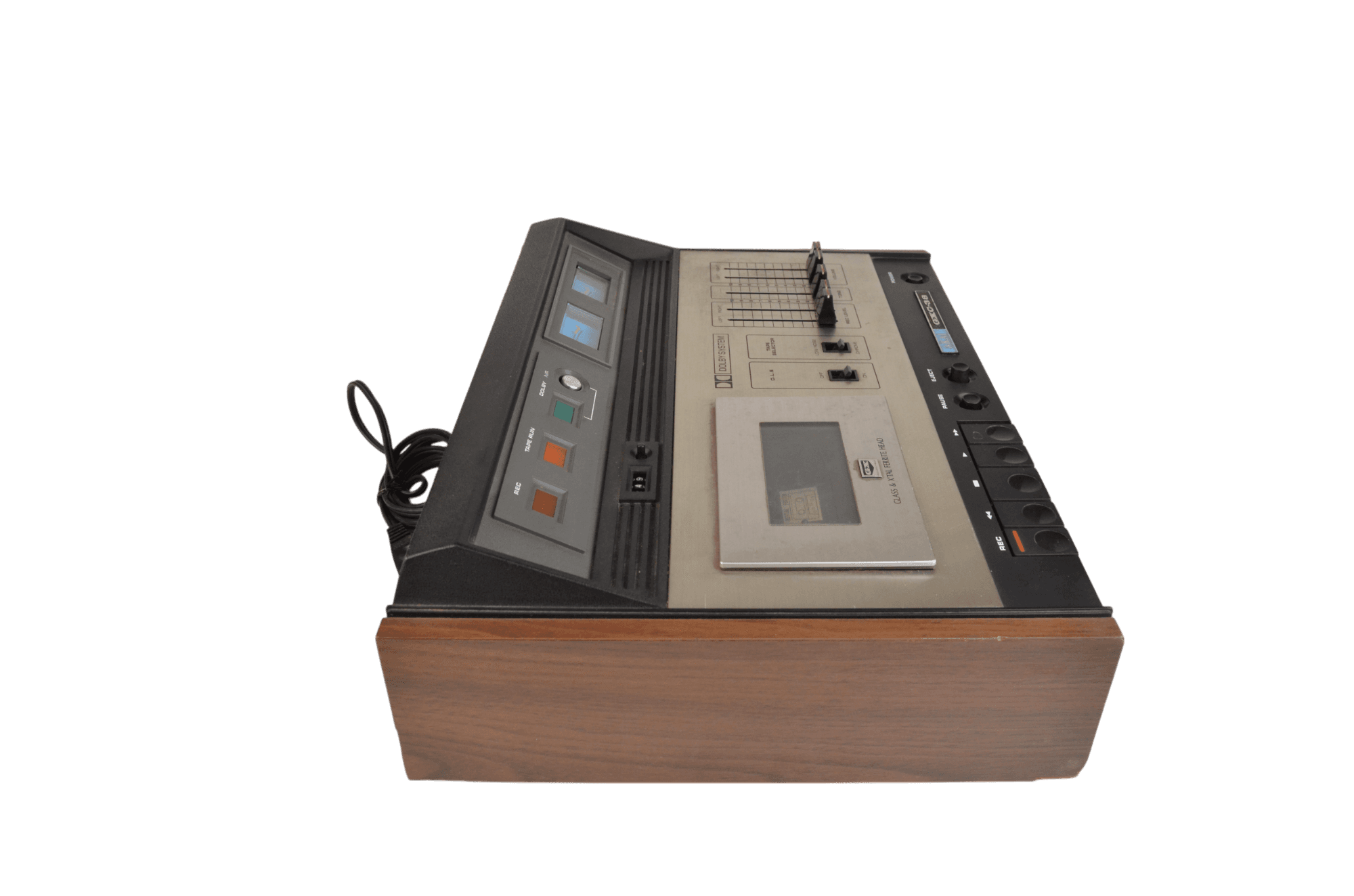

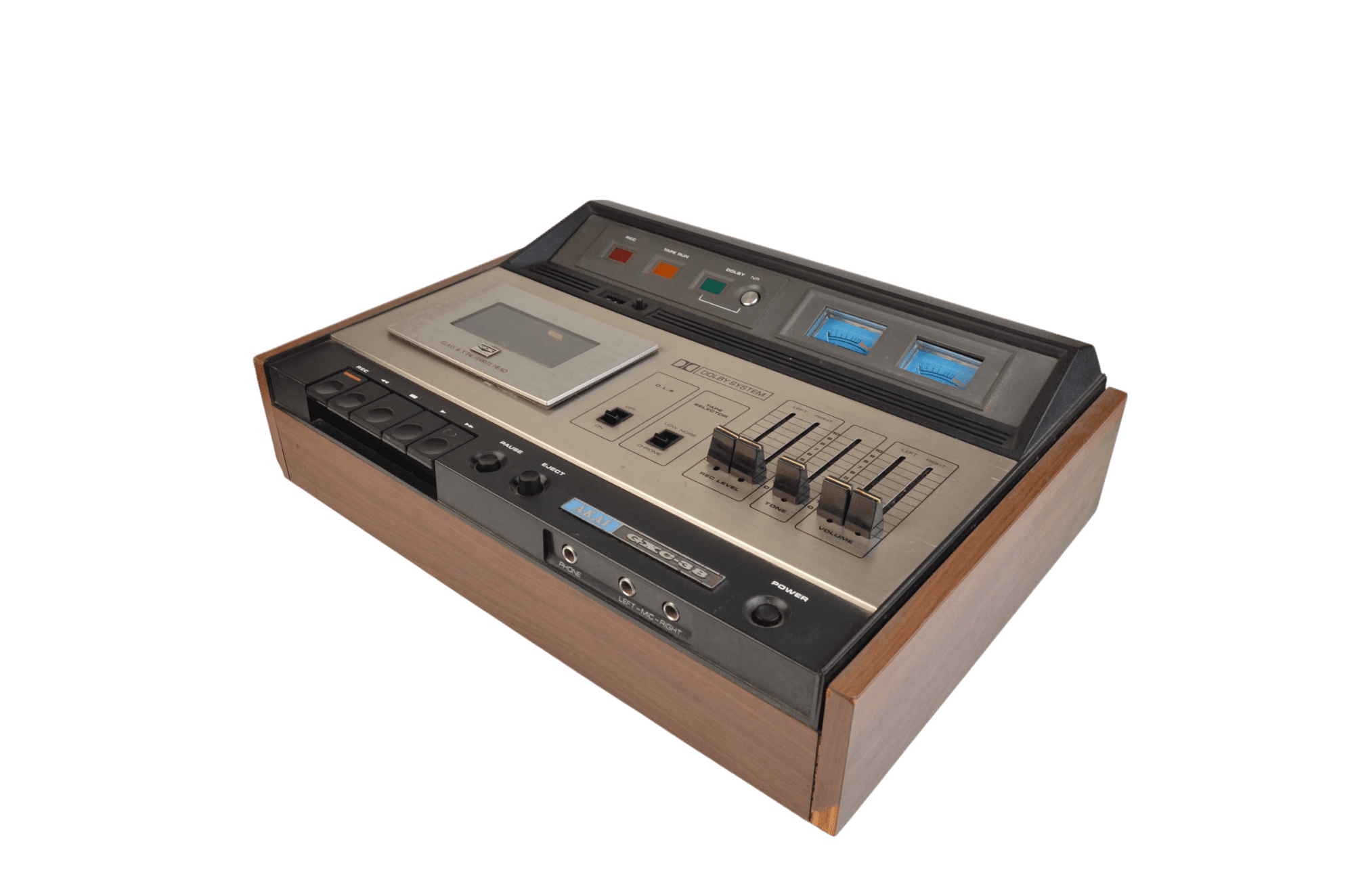

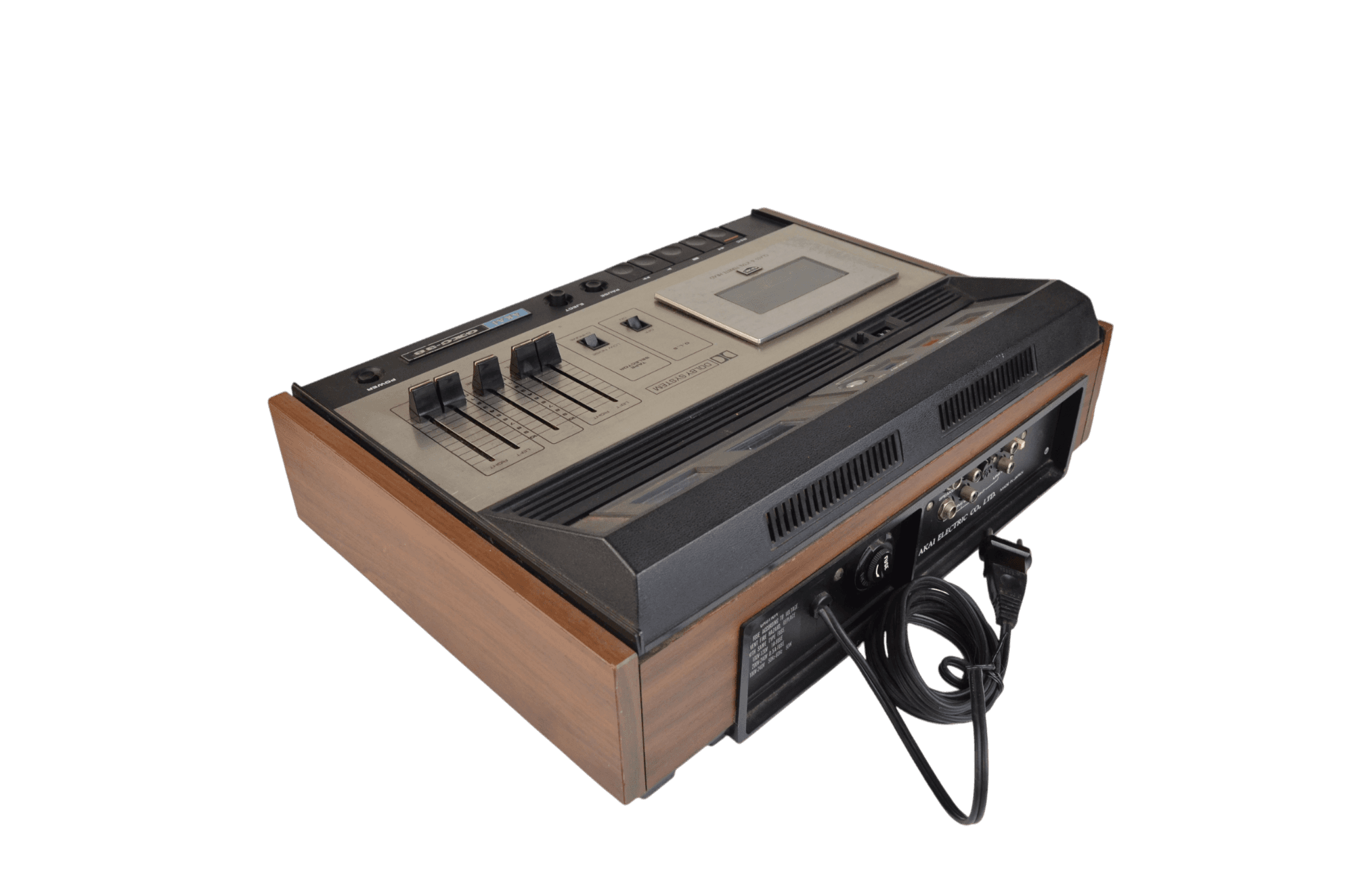

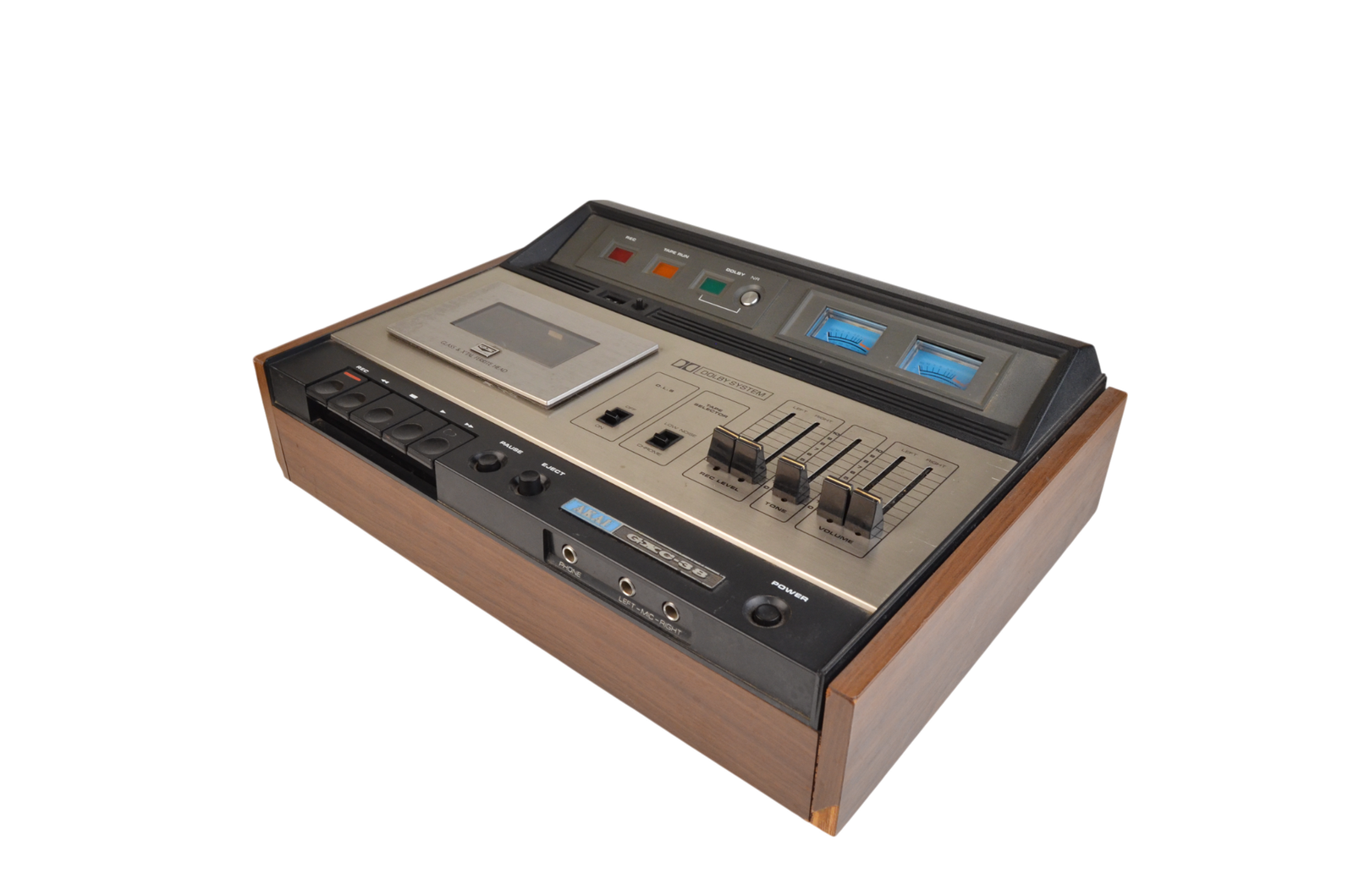

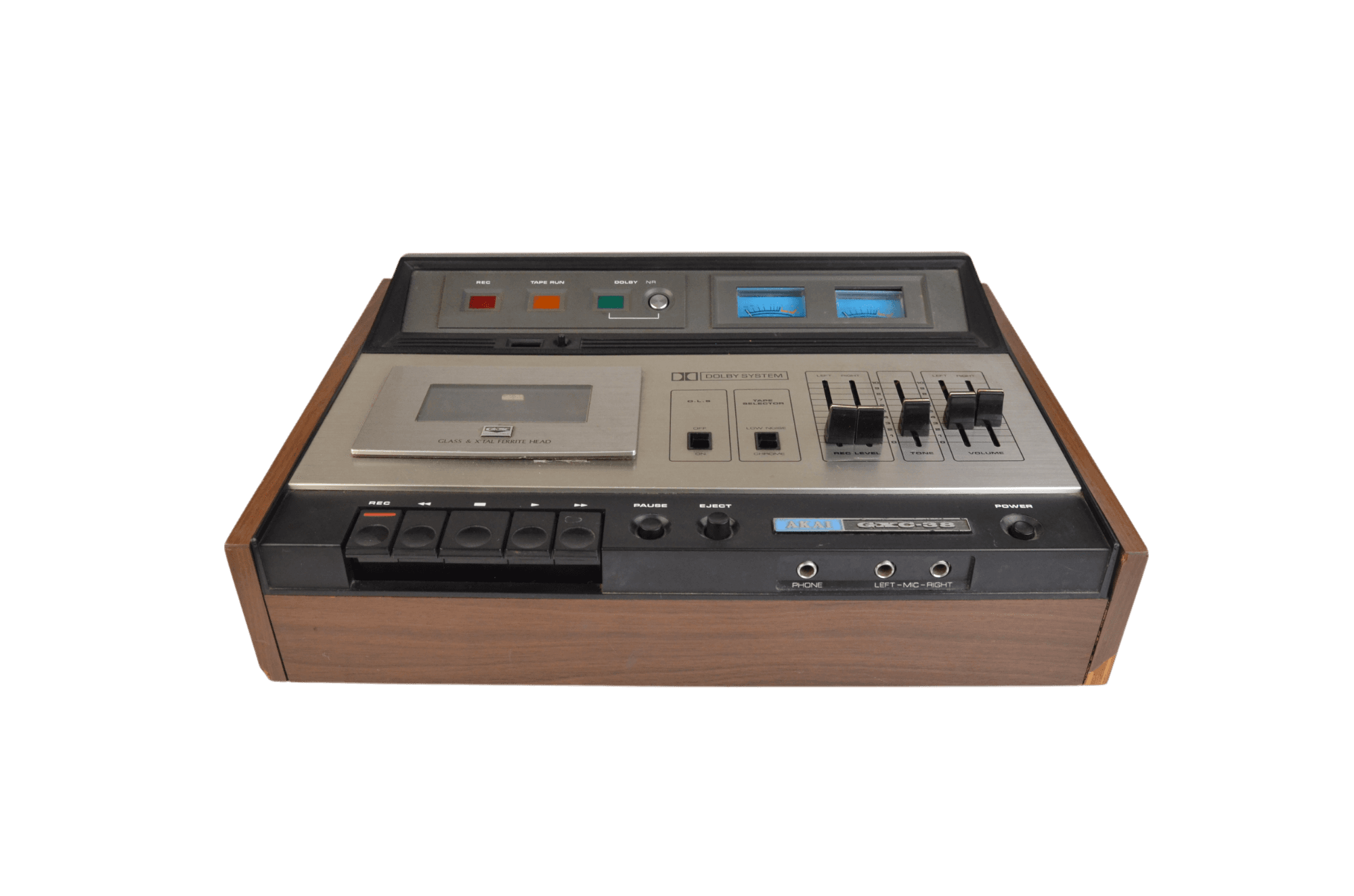

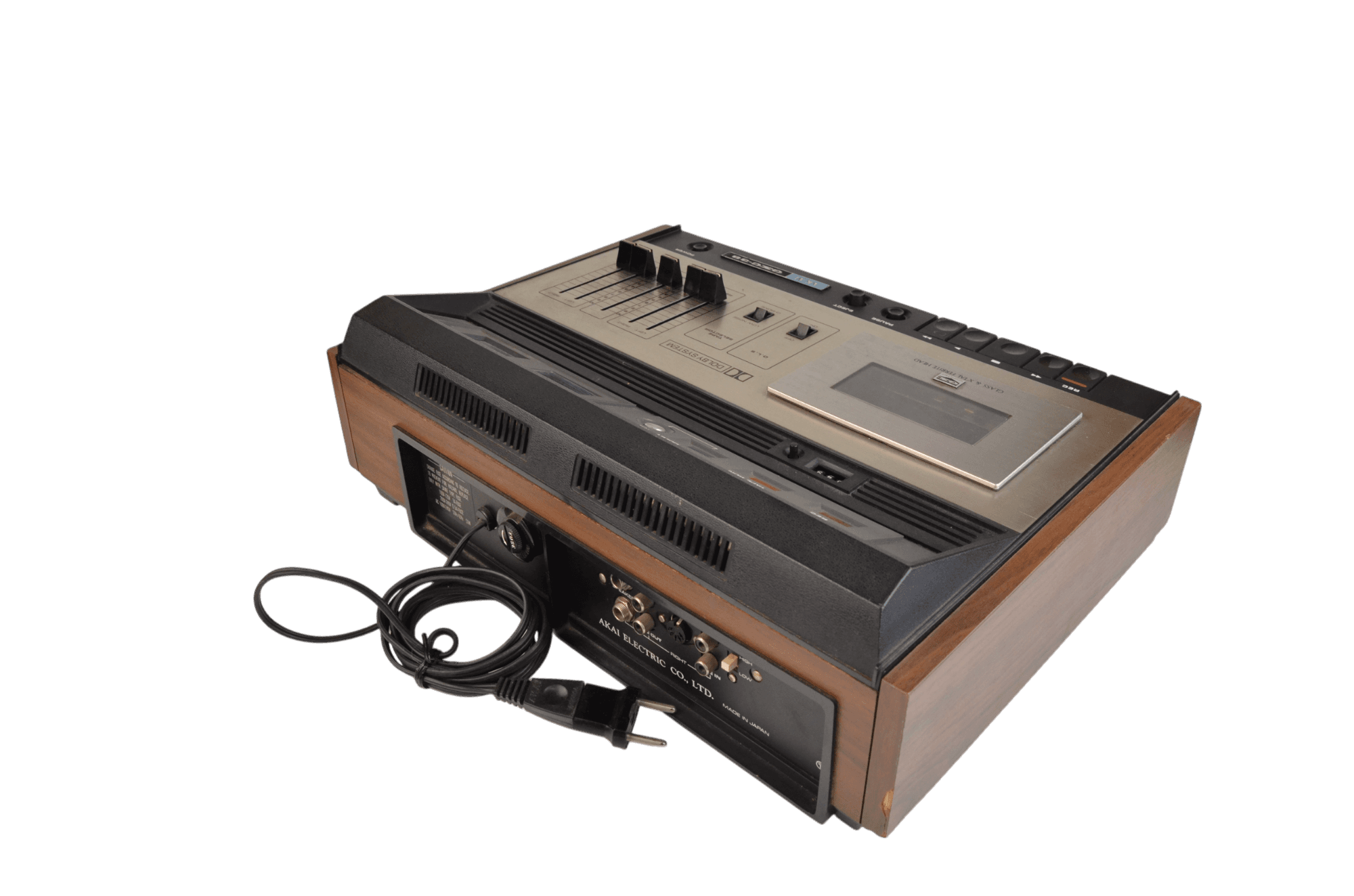

Akai GXC-38(1975)

• Manufacturer: Akai Electric Co., Ltd., Tokyo, Japan
• Type: Cassette tape deck with integrated amplifier
• Years of Manufacture: 1973–1976
• Dimensions: 410 x 123 x 295 mm
• Weight: 7 kg
• Power: AC supply (110/120/220/240V)

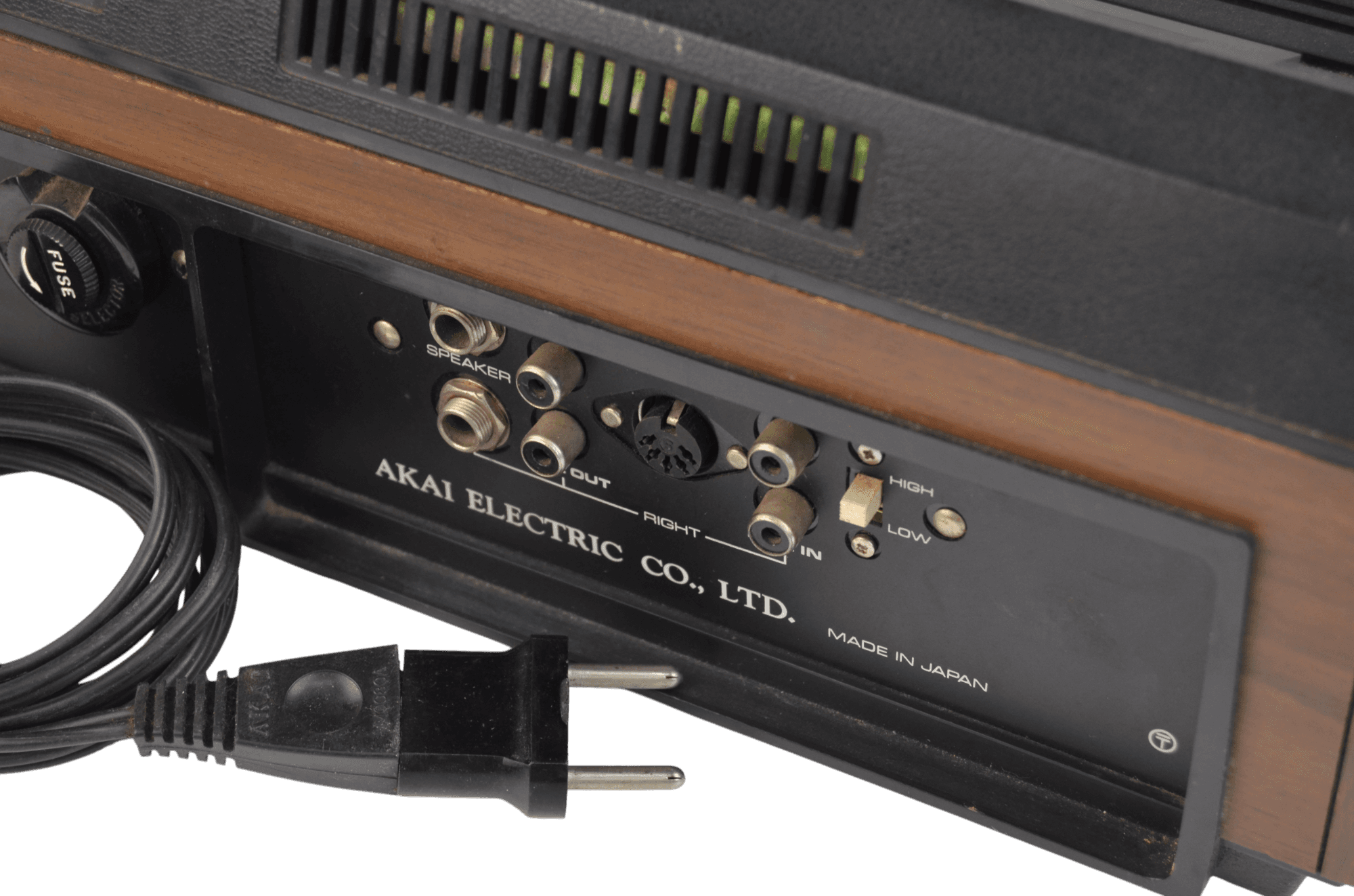

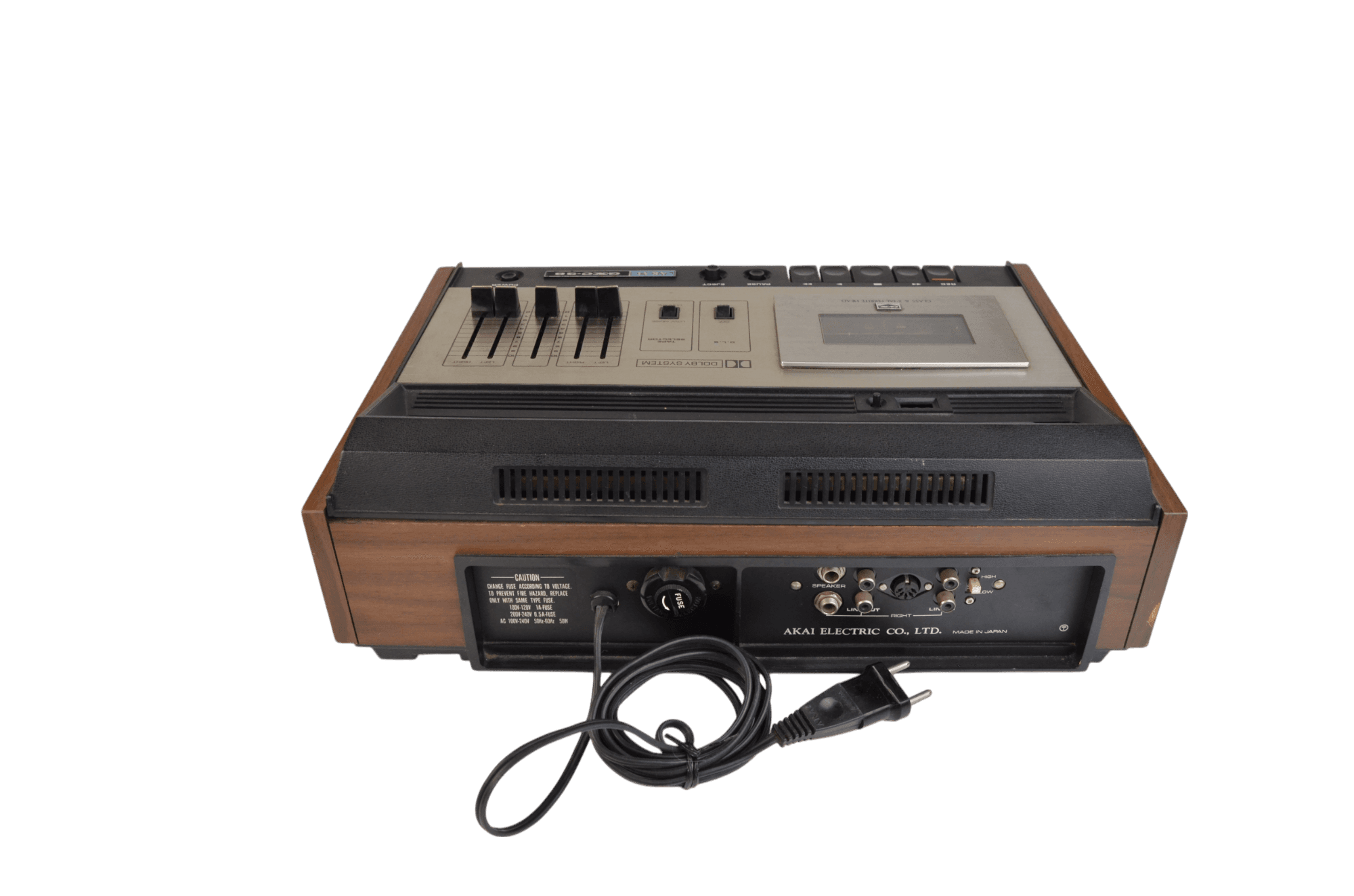

• Connections:
  • Inputs: 80mV (line), 0.5mV (mic)
  • Outputs: 0.775V (line)
• Technical Specifications:
  • Audio Heads: 2 (recording and playback)
  • Motor: 1 (induction type)
  • Tape Speed: 4.76 cm/s
  • Tape Types: Type I (normal), CrO2 (chrome)
  • Frequency Response: 30 Hz–18 kHz (CrO2 tape)
  • Signal-to-Noise Ratio: 50 dB
  • Wow and Flutter: 0.12% WRMS
  • Distortion Factor: 1.5%
• Highlights:
  • GX Head Technology: Features Akai’s wear-resistant glass and crystal ferrite heads for enhanced durability and audio clarity.
  • Built-in Amplifier: Allows direct connection to speakers, making it a versatile standalone unit.
  • Over-Level Suppressor (O.L.S.): Reduces distortion during high-level recordings, ideal for dynamic audio sources.
  • Pause Control and Auto-Stop: Enhances usability with precise control and automatic tape-end shutdown.
  • Tape Selector Switch: Supports both Type I and CrO2 tapes for flexible recording options.
  • 3-Digit Index Counter: Simplifies tape navigation and track location.
  • Microphone and Headphone Jacks: Enables live recordings and private listening.

The Akai GXC-38 is praised for its robust build and reliable performance, making it a sought-after vintage audio device for enthusiasts, though it lacks Dolby noise reduction (unlike the GXC-38D model).
