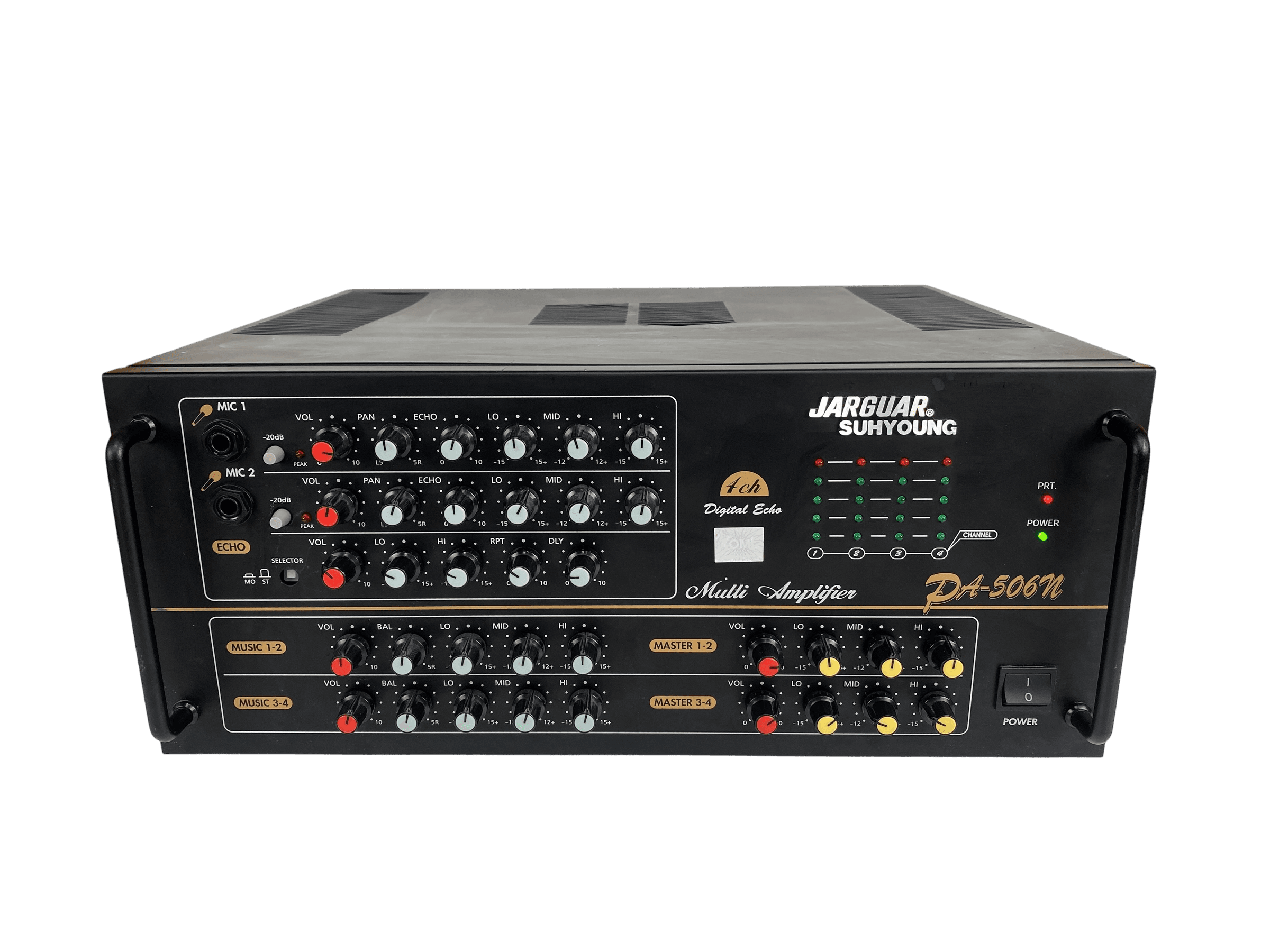

Jarguar Suhyoung PA-506N(1999)

The Jarguar Suhyoung PA-506N is a multi-channel public address (PA) amplifier, likely designed for professional audio applications such as public announcements, live events, karaoke systems, or small venues. Manufactured by Suhyoung Electronics Co., Ltd., a South Korean company known for producing audio equipment, this model appears to be a rack-mountable unit tailored for versatility and durability. The branding "Jarguar" (possibly a stylized or typo variant of "Jaguar") suggests a premium or robust design, though specific documentation is scarce, indicating it may be a niche or older model.

Key Features and Specifications (Based on Image Analysis and General PA Amplifier Trends)

• Type: Multi-channel PA Amplifier with digital echo and mixing capabilities.
• Channels: Supports at least 6 channels (4 music inputs, 2 microphone inputs).

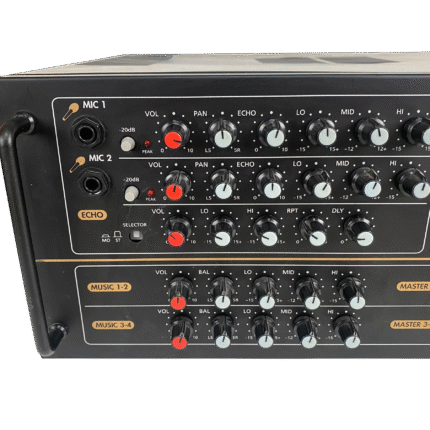

• Inputs:

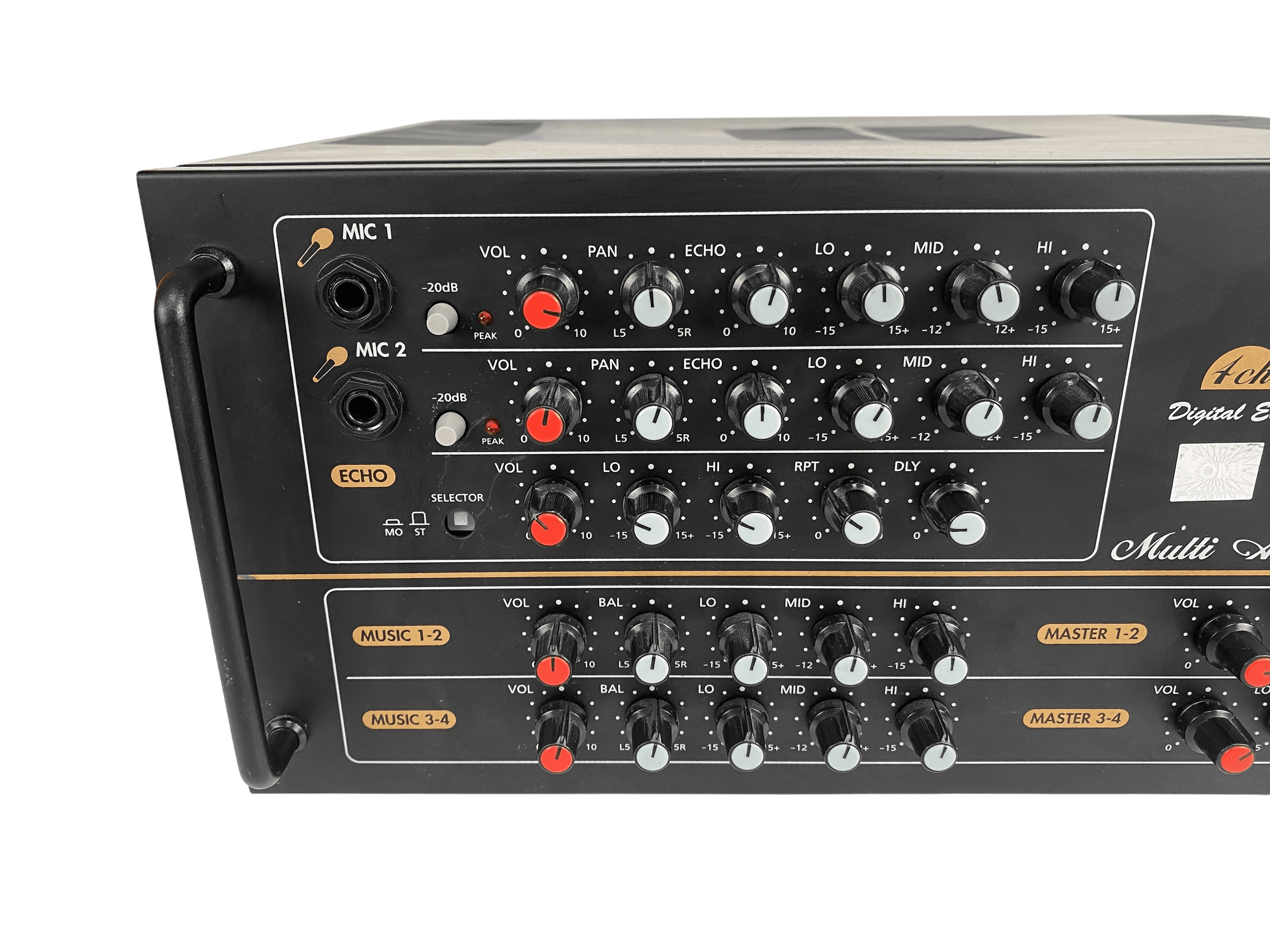

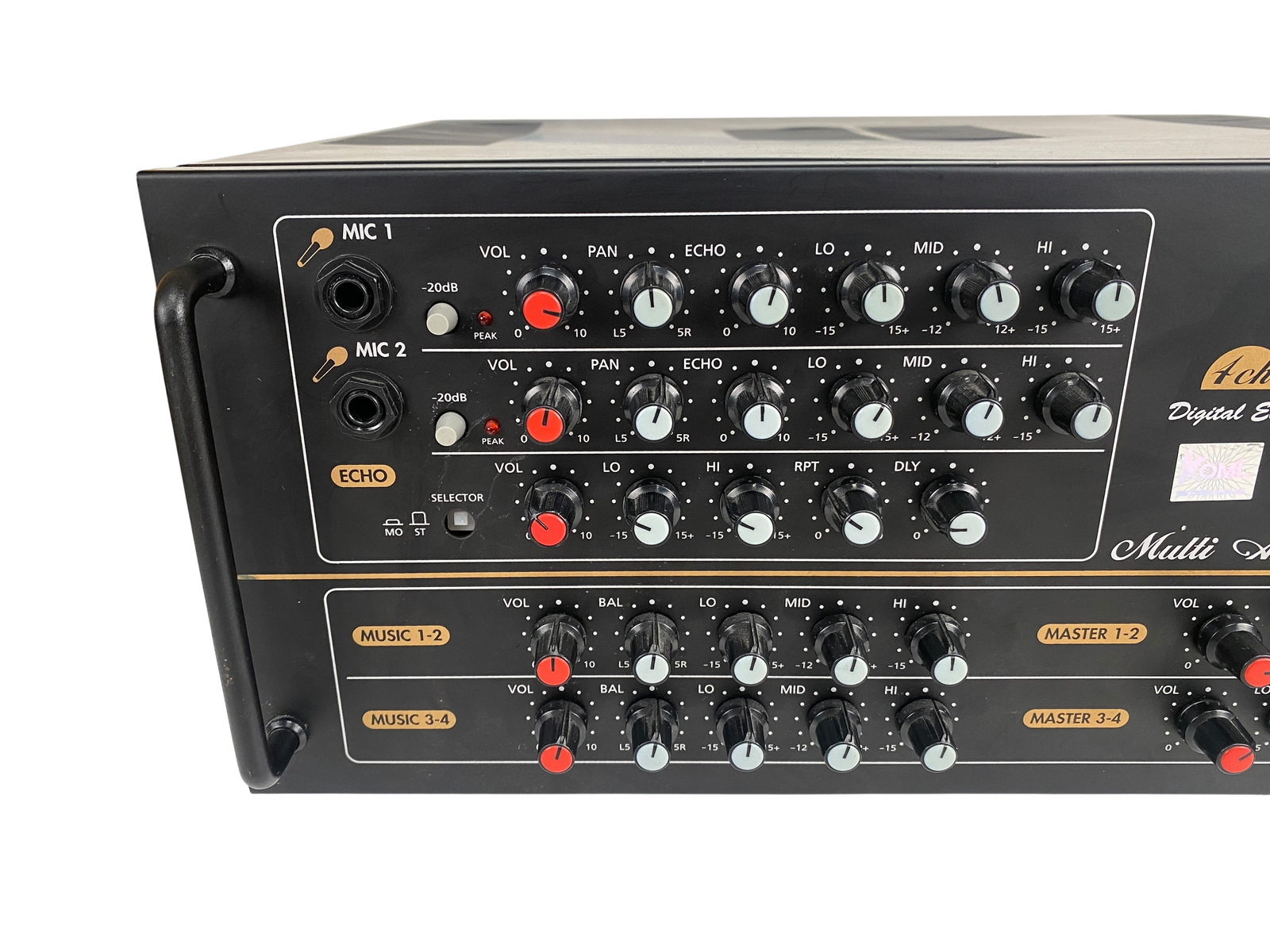

  • Microphone: 2x 1/4" (6.35 mm) jacks (MIC 1, MIC 2) with individual volume, pan, echo, and 3-band EQ (low, mid, high) controls per channel.
  • Music: 4x RCA inputs (MUSIC 1-2, MUSIC 3-4) with volume, balance, and 3-band EQ (low, mid, high) controls per pair.
  • Additional: Echo selector and mode switch (MD/ST) for microphone effects.

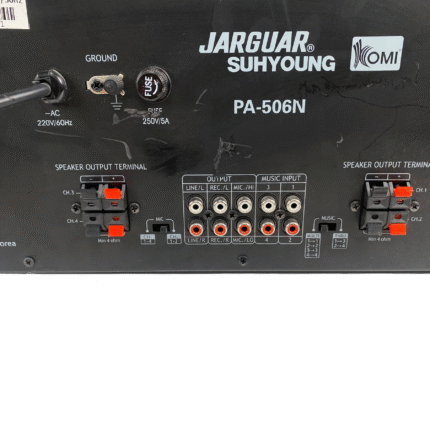

• Outputs:
  • Speaker terminals for 4 channels (CH 1-4), supporting 4-16 ohm loads.
  • Line/Rec outputs (RCA) for recording or additional amplification.
  • Music input thruput (RCA) for daisy-chaining.

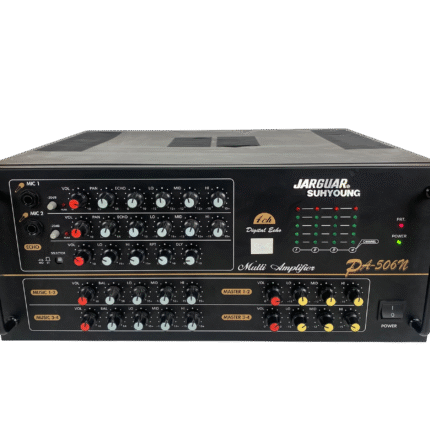

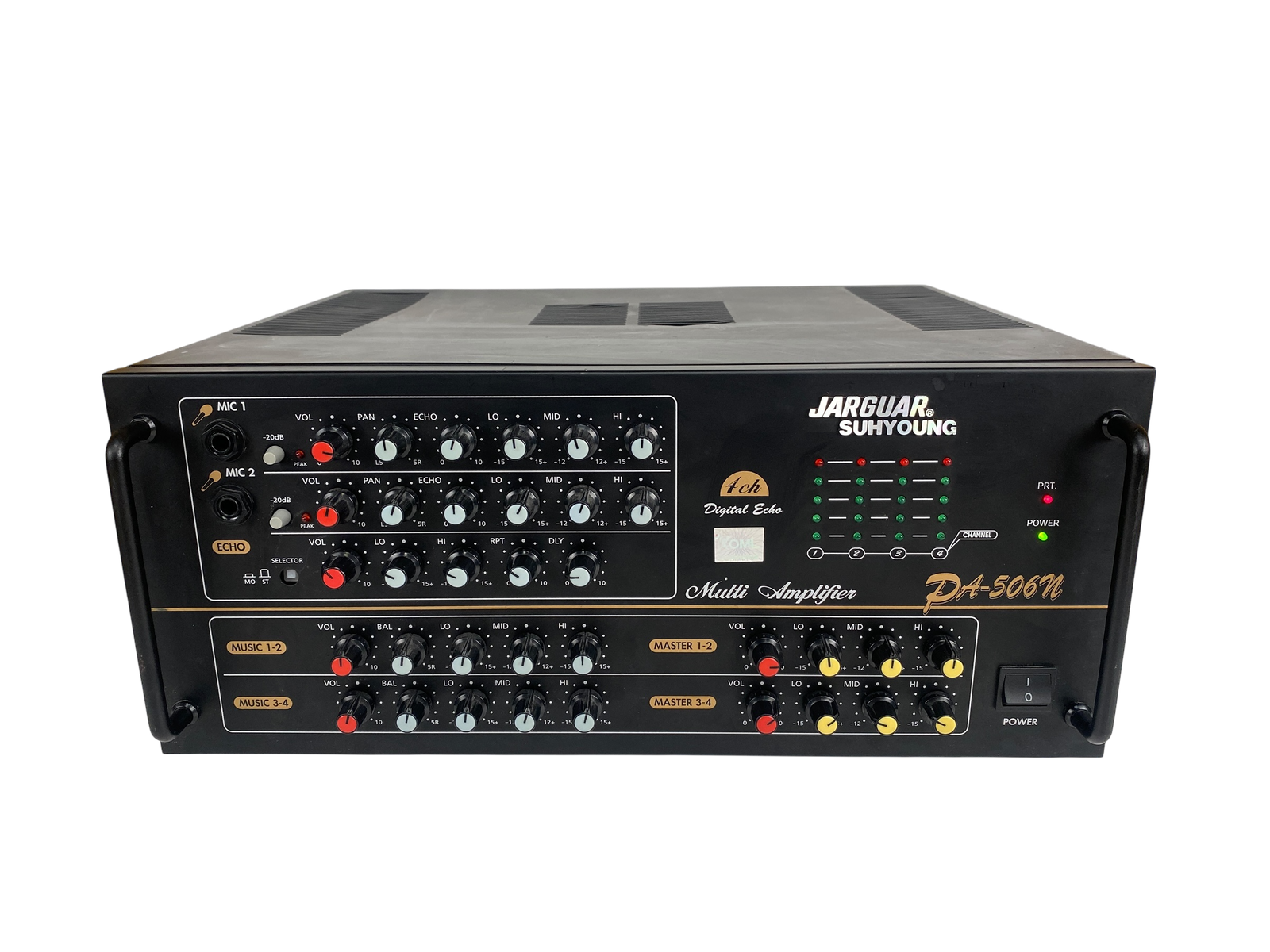

• Controls:
  • Individual channel sliders for volume and EQ adjustment.

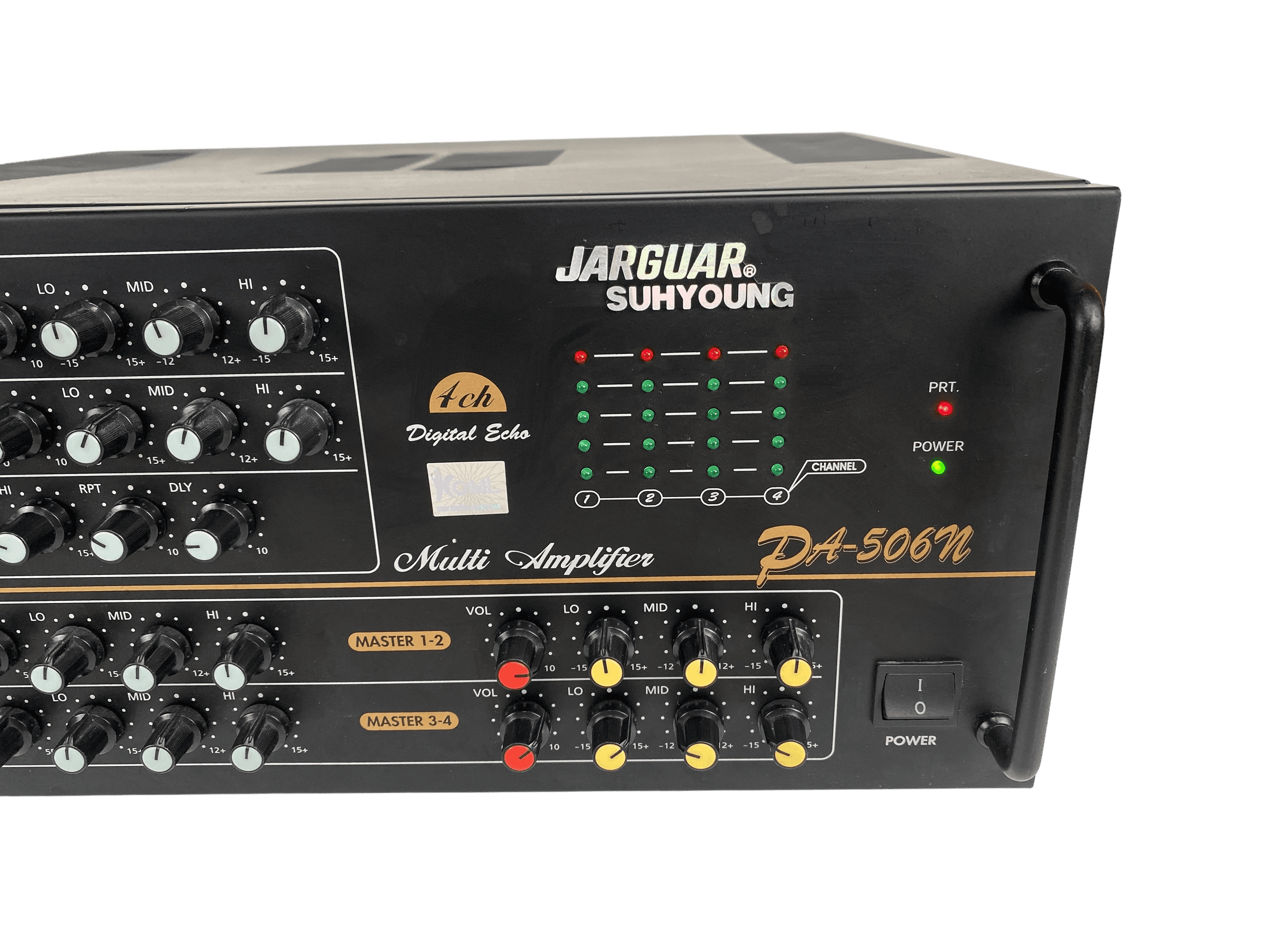

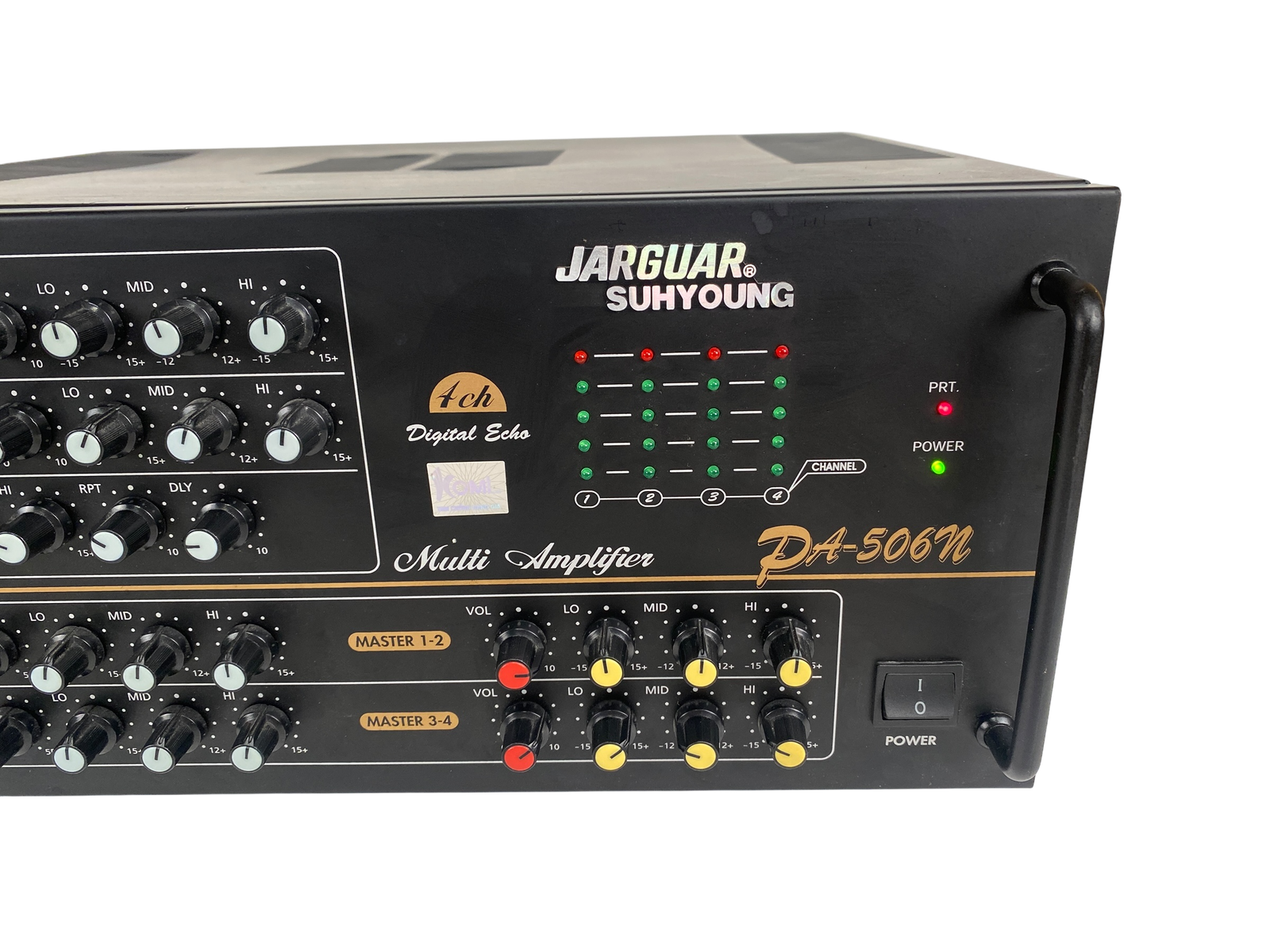

  • Master volume controls for two pairs (MASTER 1-2, MASTER 3-4).
  • Digital echo with 7-channel adjustment (likely delay and repeat settings).

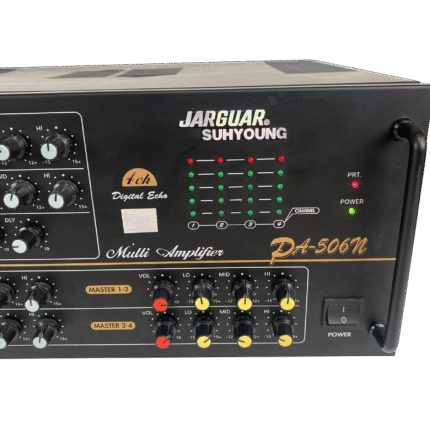

  • Power switch and indicator lights (green for power, red for protection or peak).

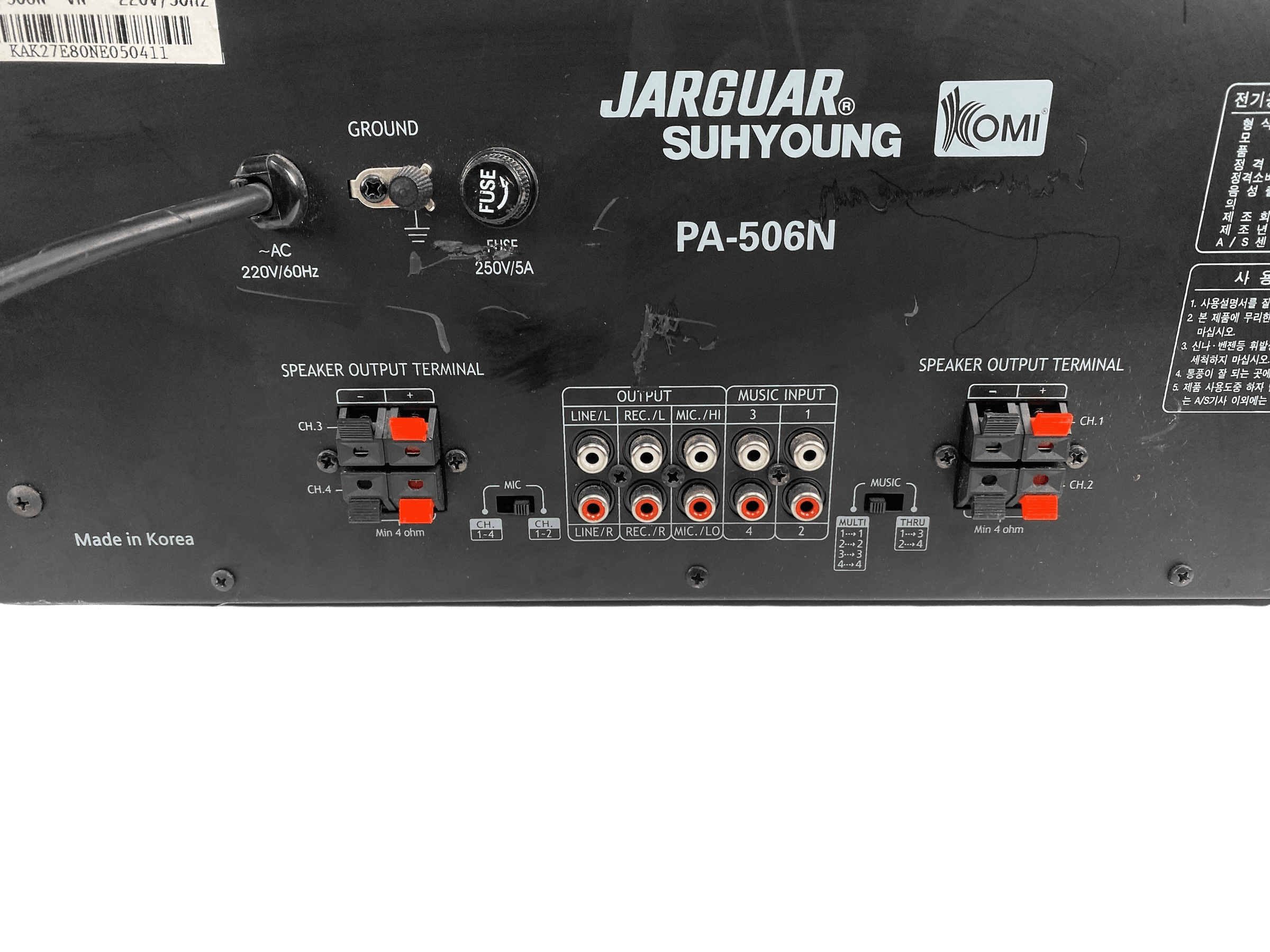

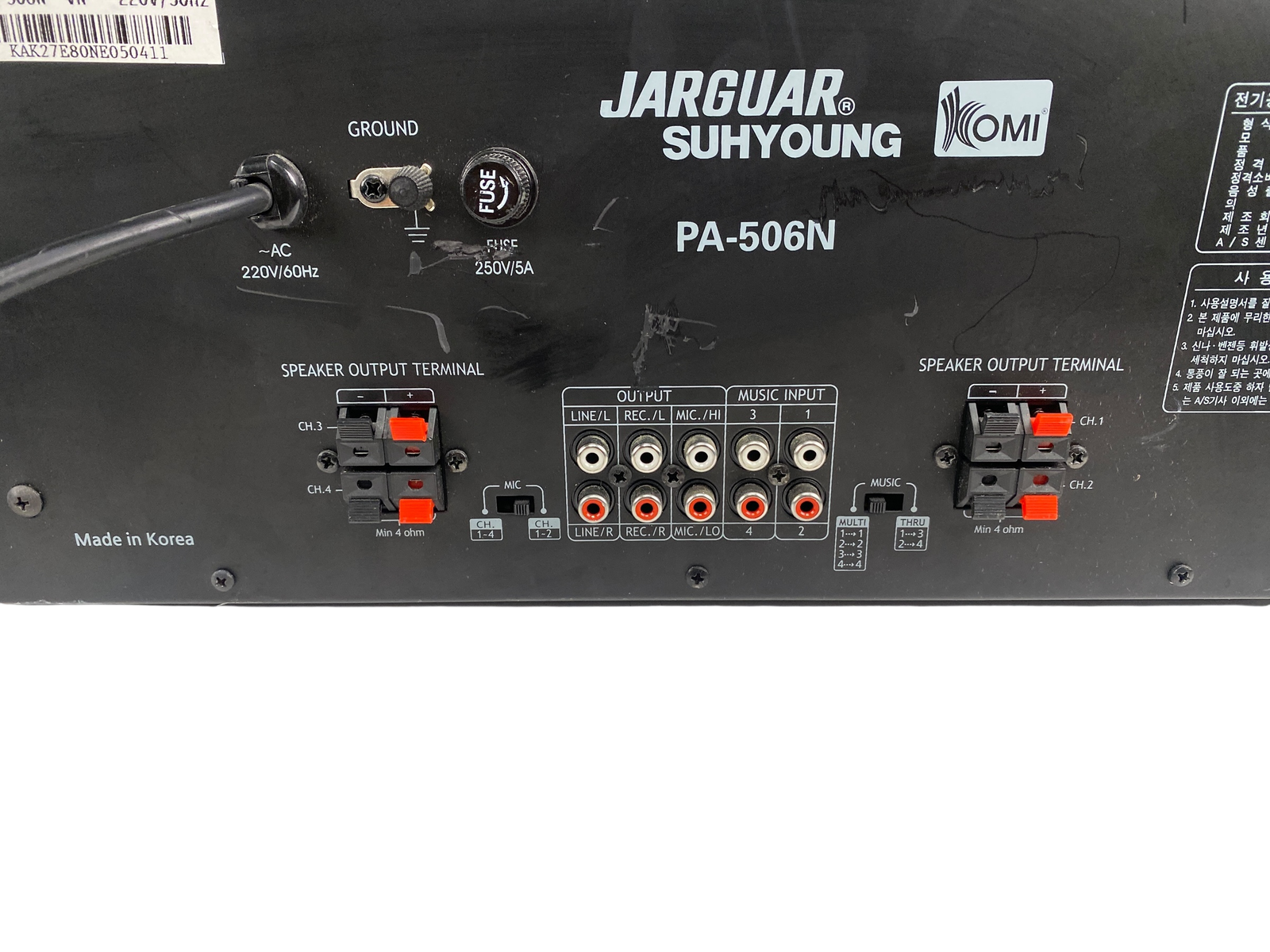

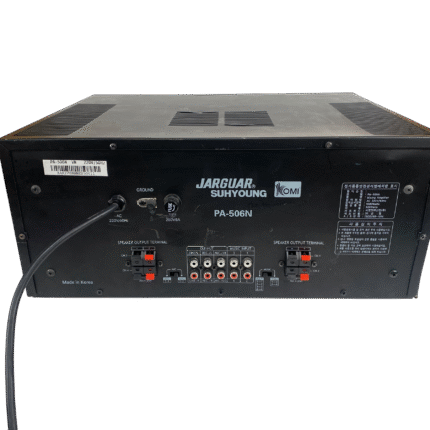

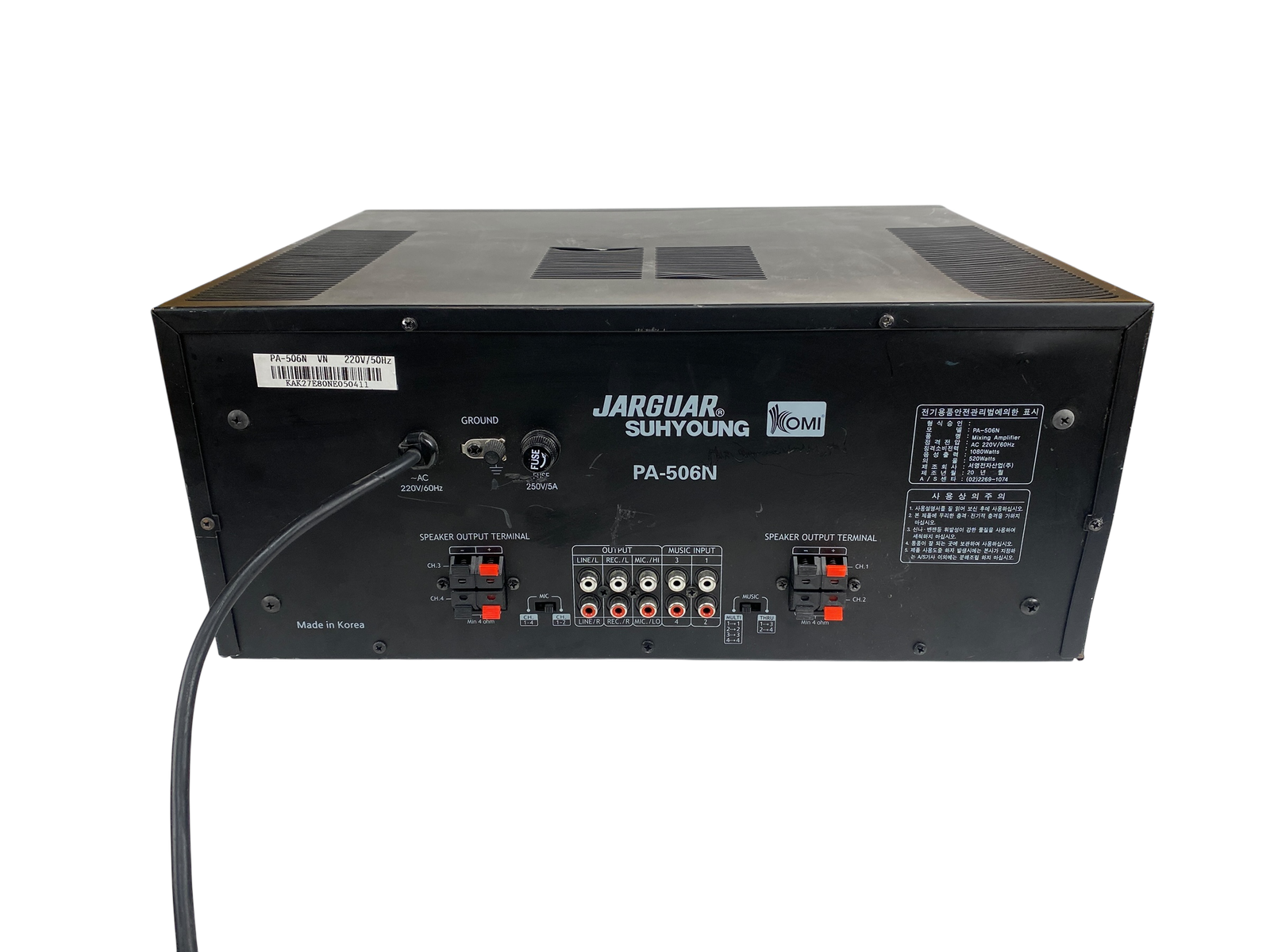

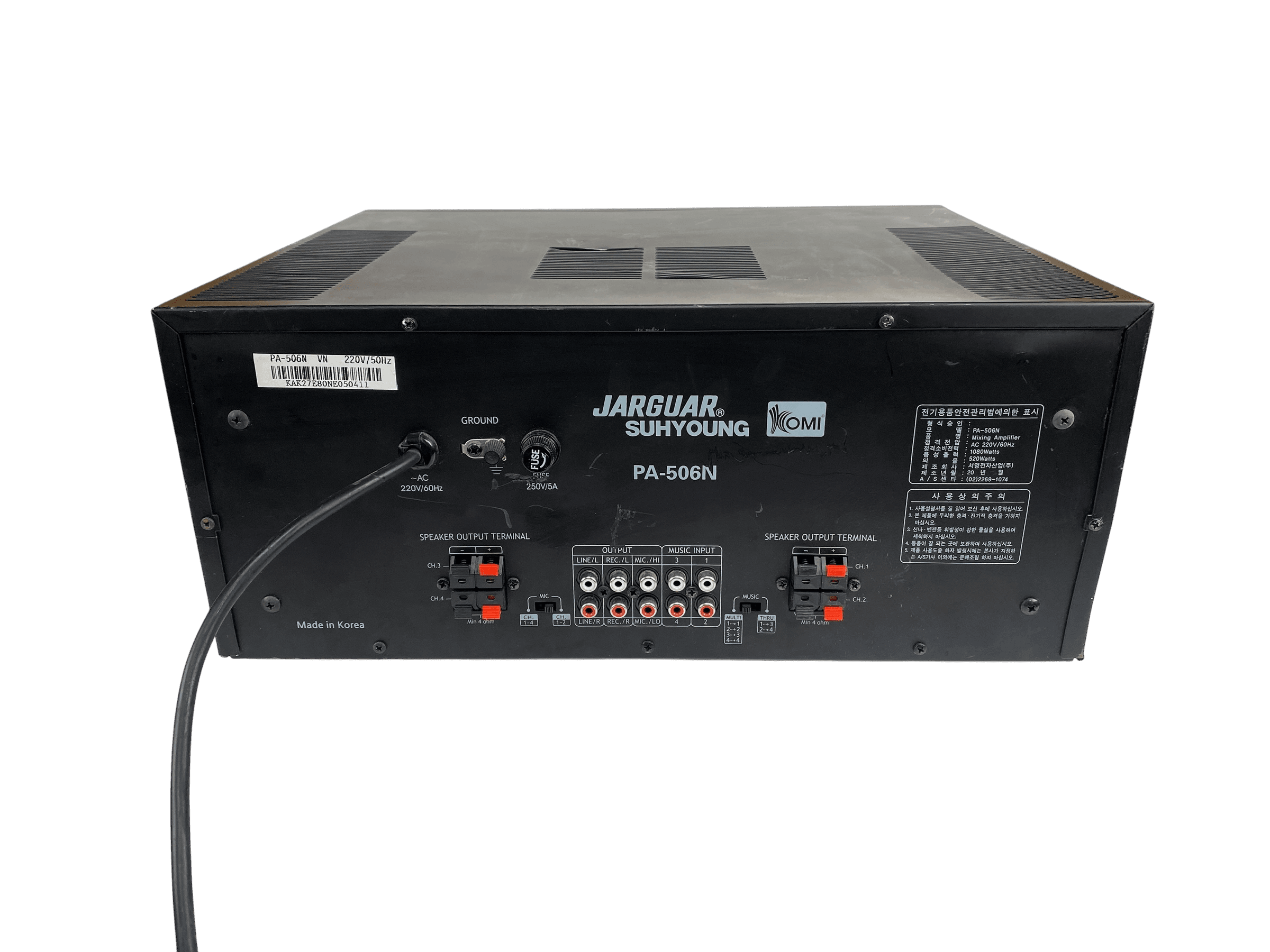

• Power Supply: 220V/60Hz AC (as indicated on the rear panel), with a 250V/5A fuse.

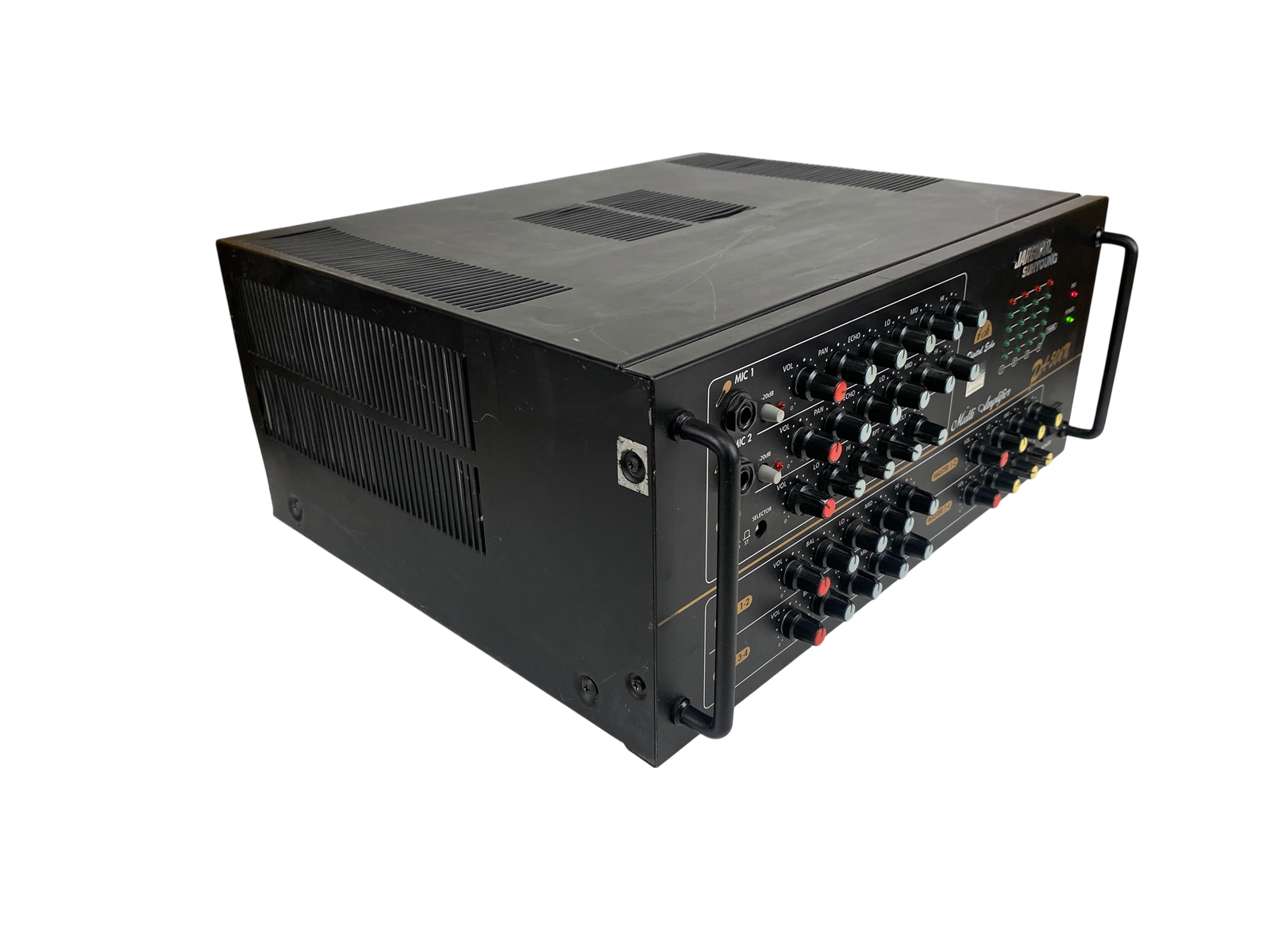

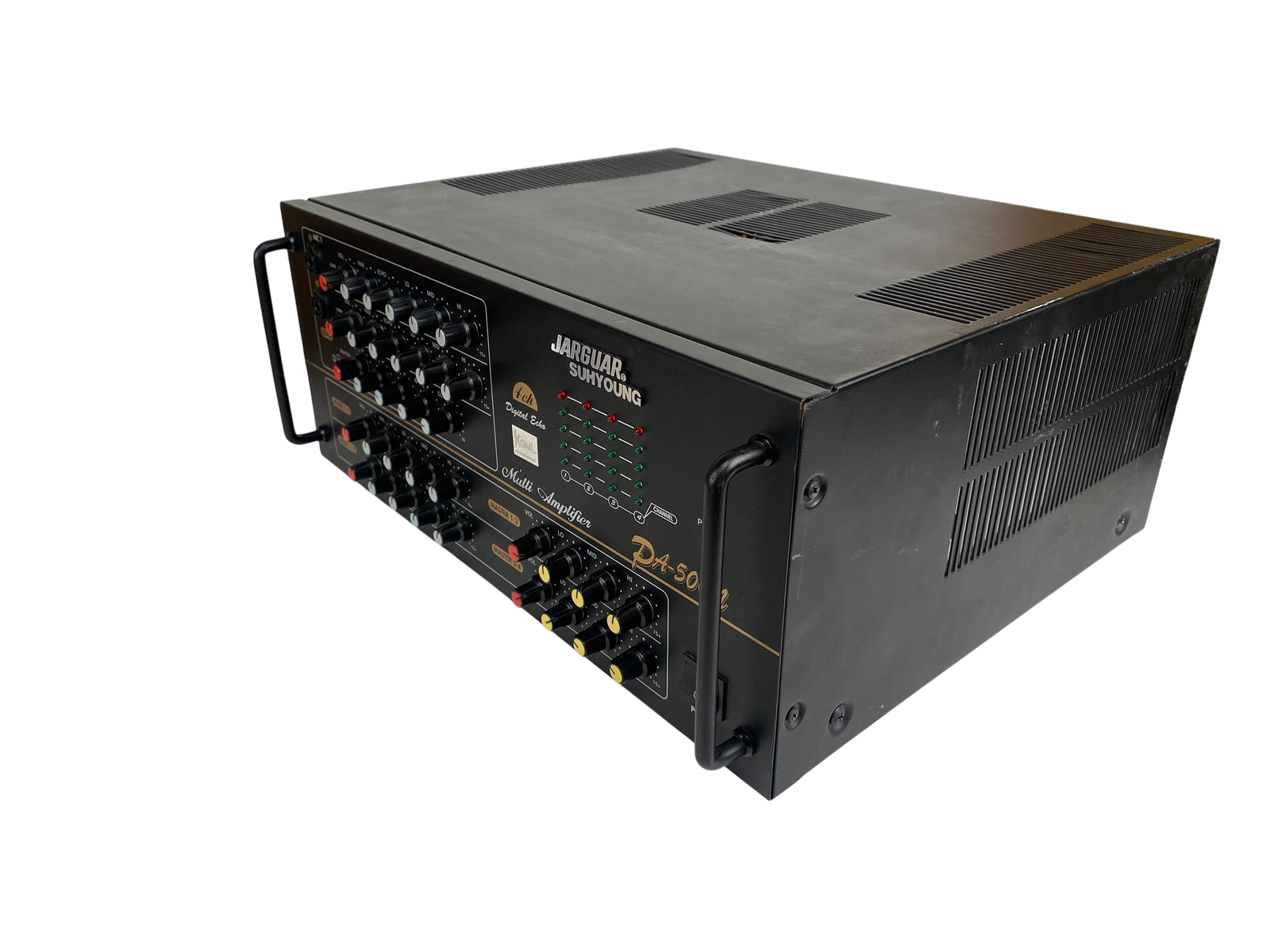

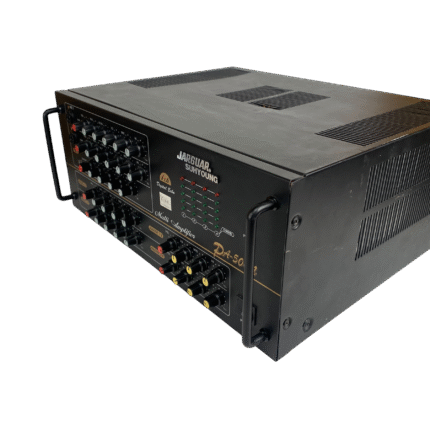

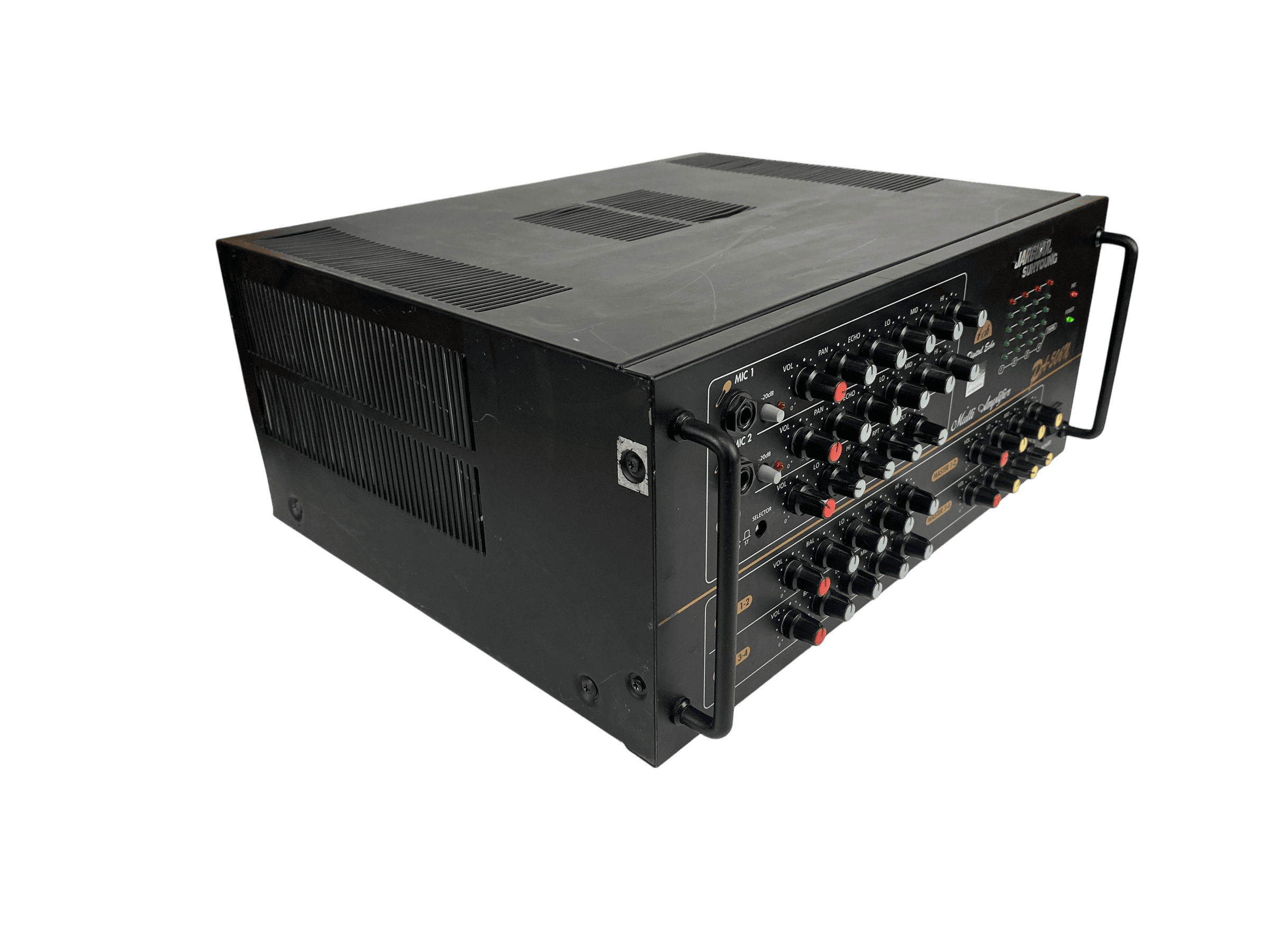

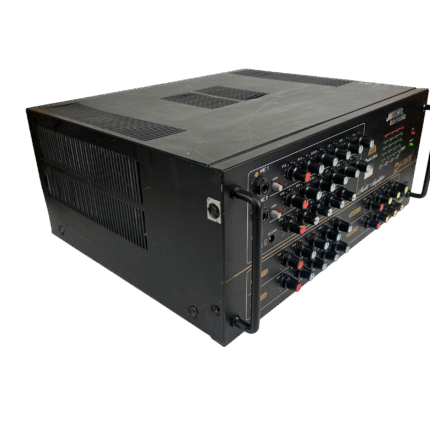

• Build: Rack-mountable design with metal chassis, handles for portability, and ventilation slots.
• Additional Features: Protection circuitry (red LED), ground terminal, and Made in Korea label.

Performance and Use

• The PA-506N is designed for mixing multiple audio sources (e.g., microphones for announcements, music from CD players or turntables) with adjustable echo effects, making it suitable for karaoke, small stages, or conference rooms. The 3-band EQ per channel allows for sound tailoring, while the digital echo adds versatility for vocal enhancement. The 4-ohm minimum impedance suggests compatibility with a variety of speaker setups, though exact power output (e.g., watts per channel) is not specified in available data.
