KD-MSV8x8(2000s)

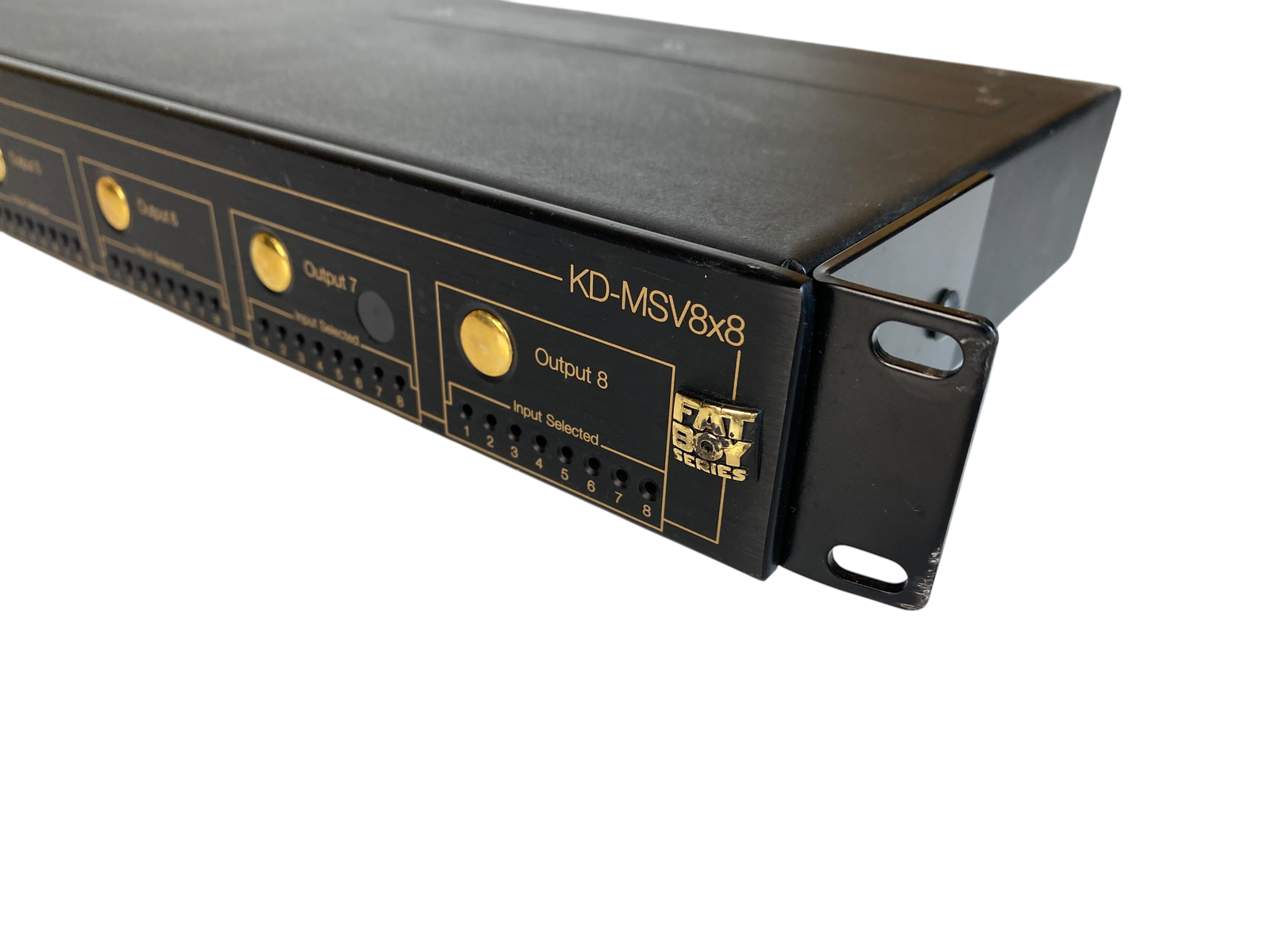

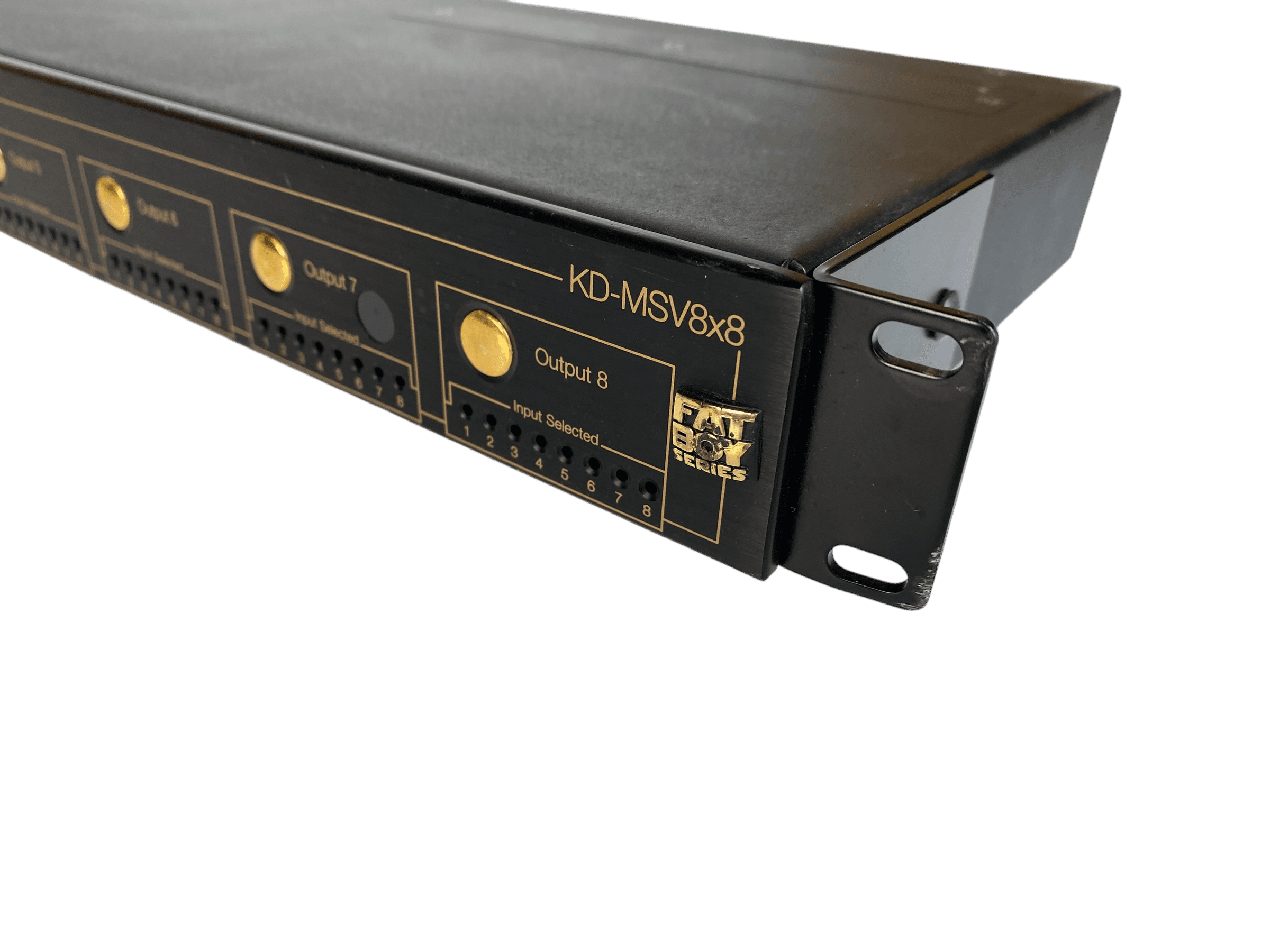

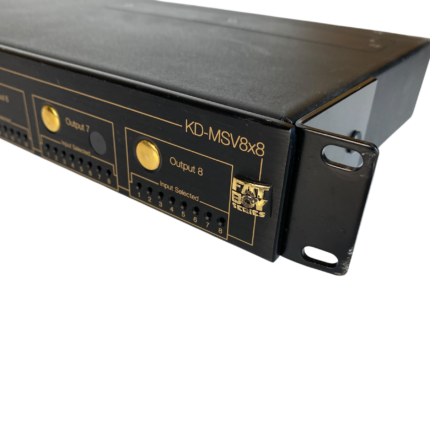

The Key Digital KD-MSV8x8 FatBOY is a professional-grade video matrix switcher from the FatBOY series, designed for switching multiple video and audio sources.

The KD-MSV8x8 FatBOY is a rack-mountable matrix switcher capable of routing up to 8 video and audio inputs to 8 independent outputs. It supports HDTV/SDTV signals and is tailored for home theater or commercial AV installations, offering flexible control options.

Key Points:

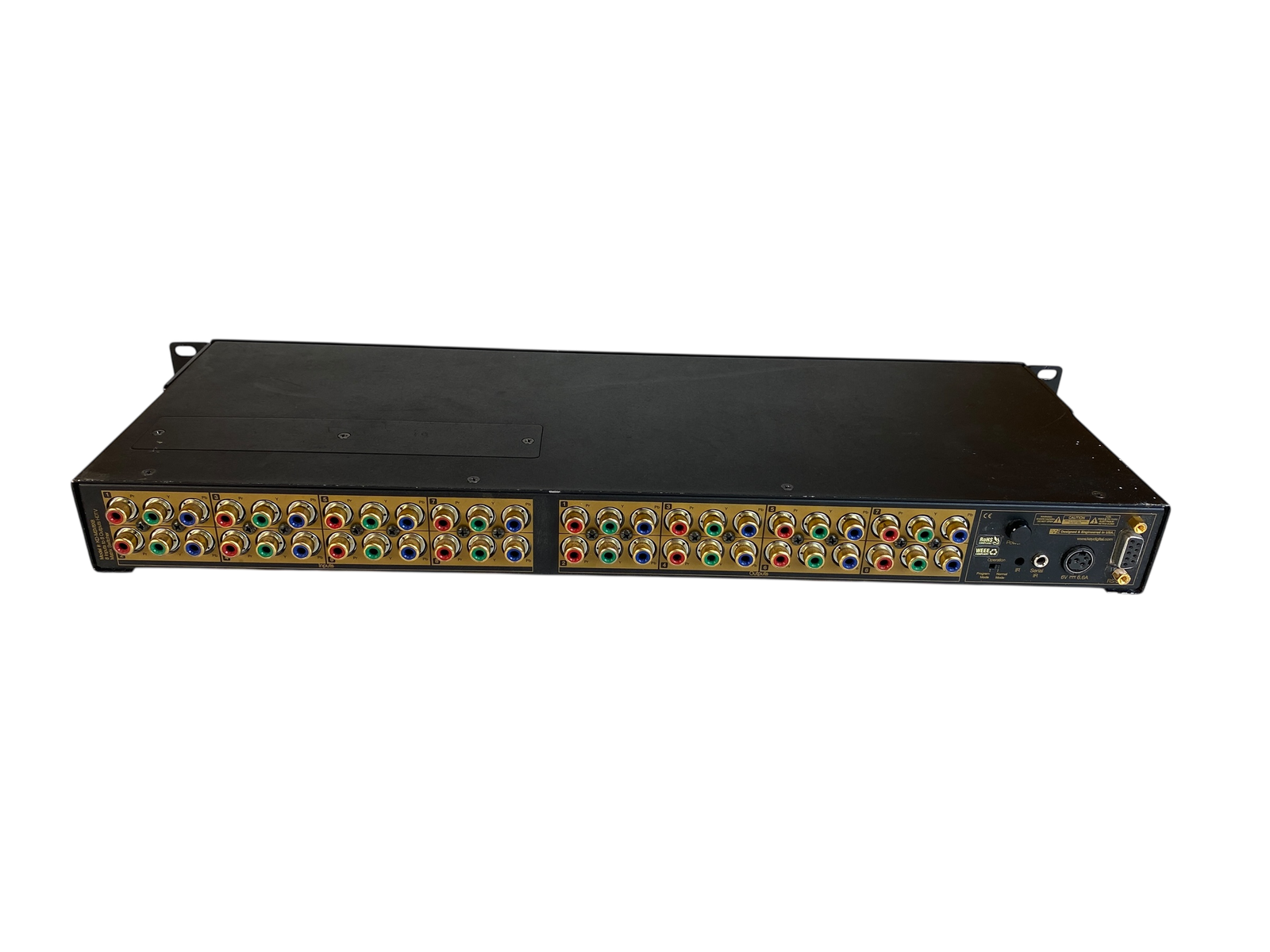

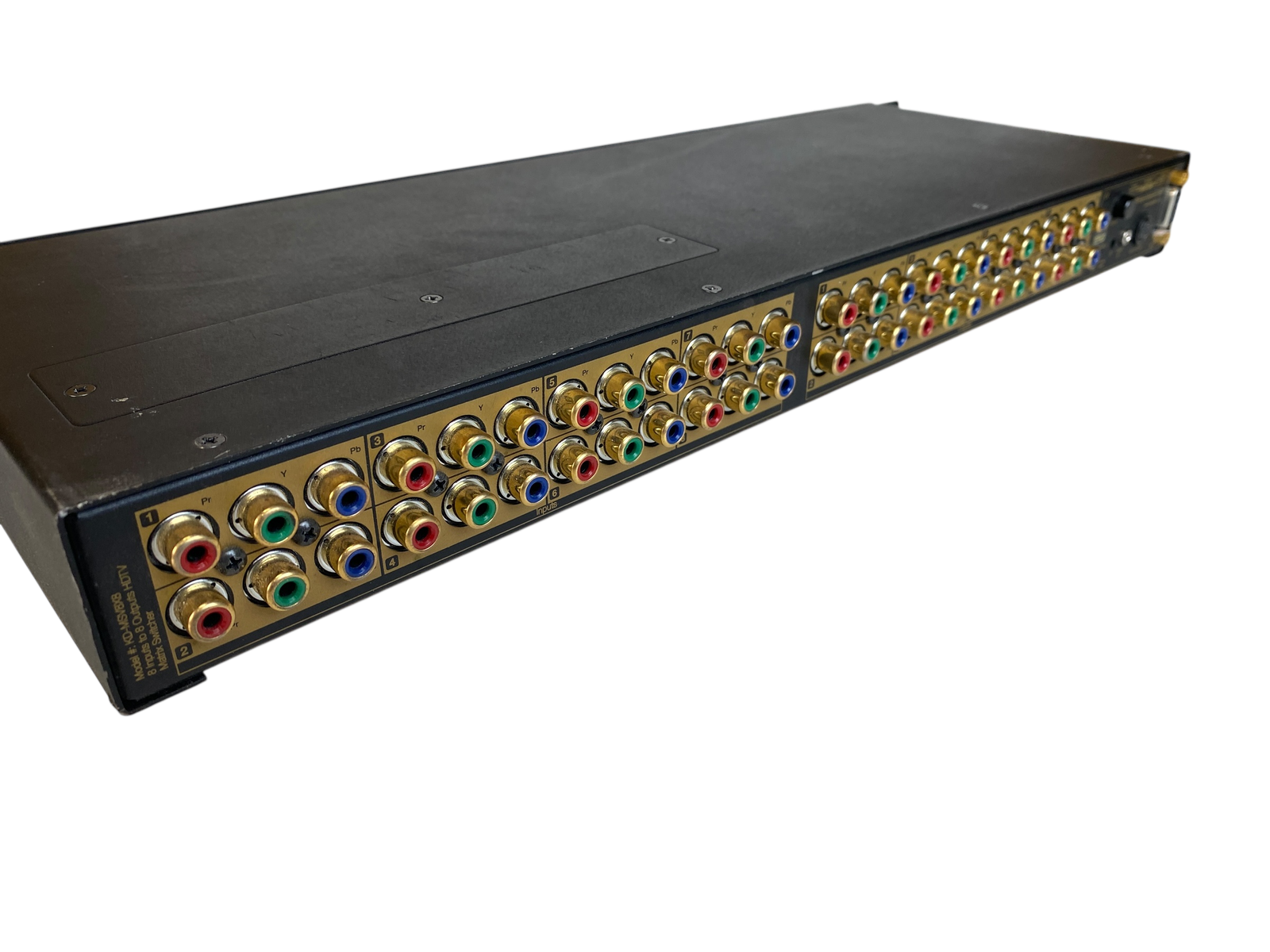

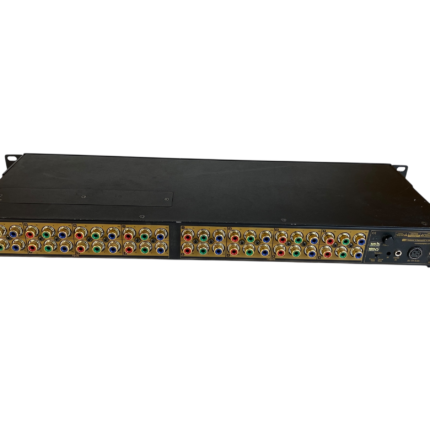

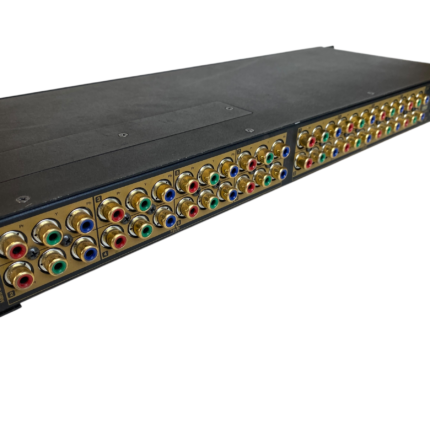

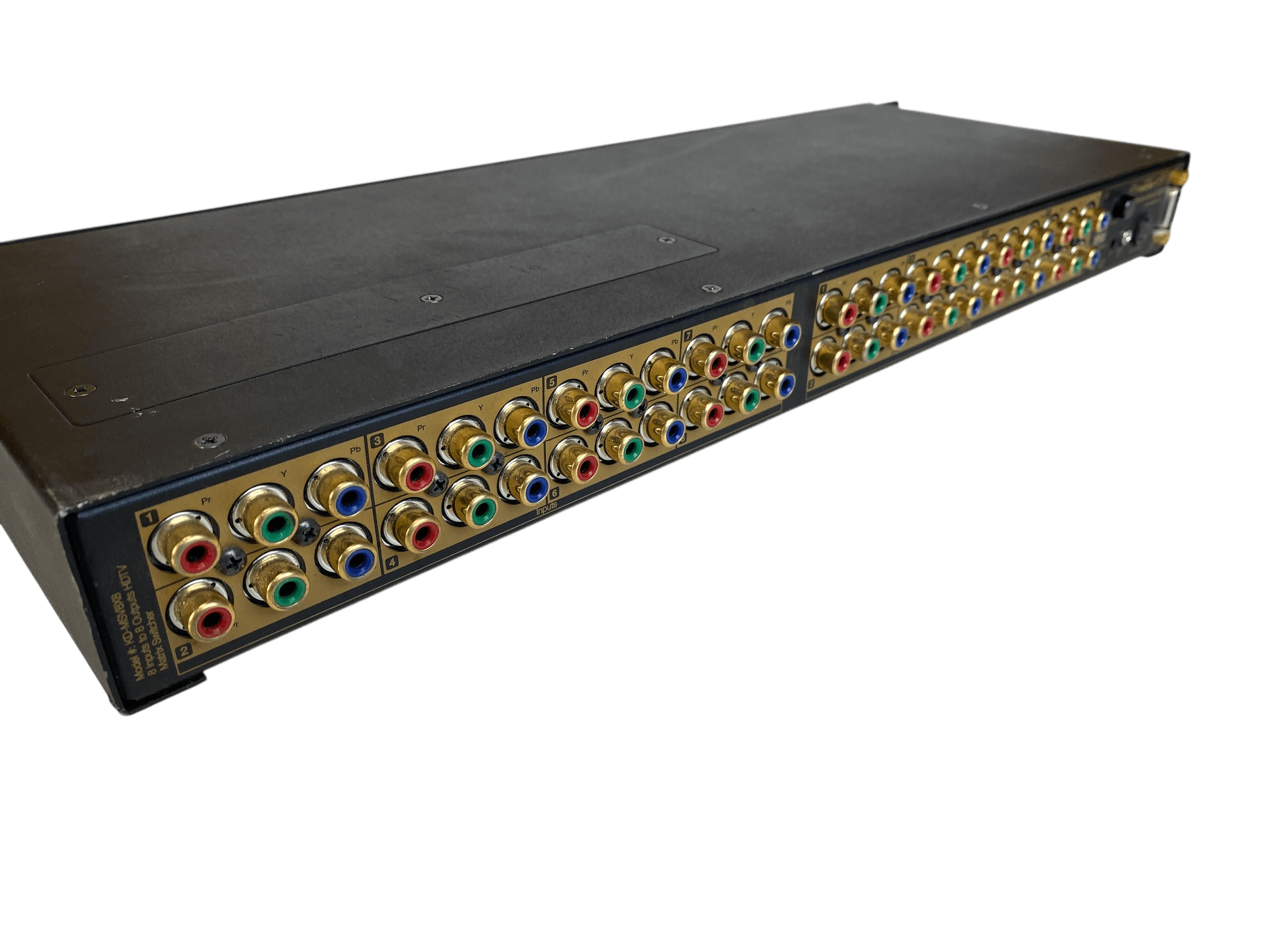

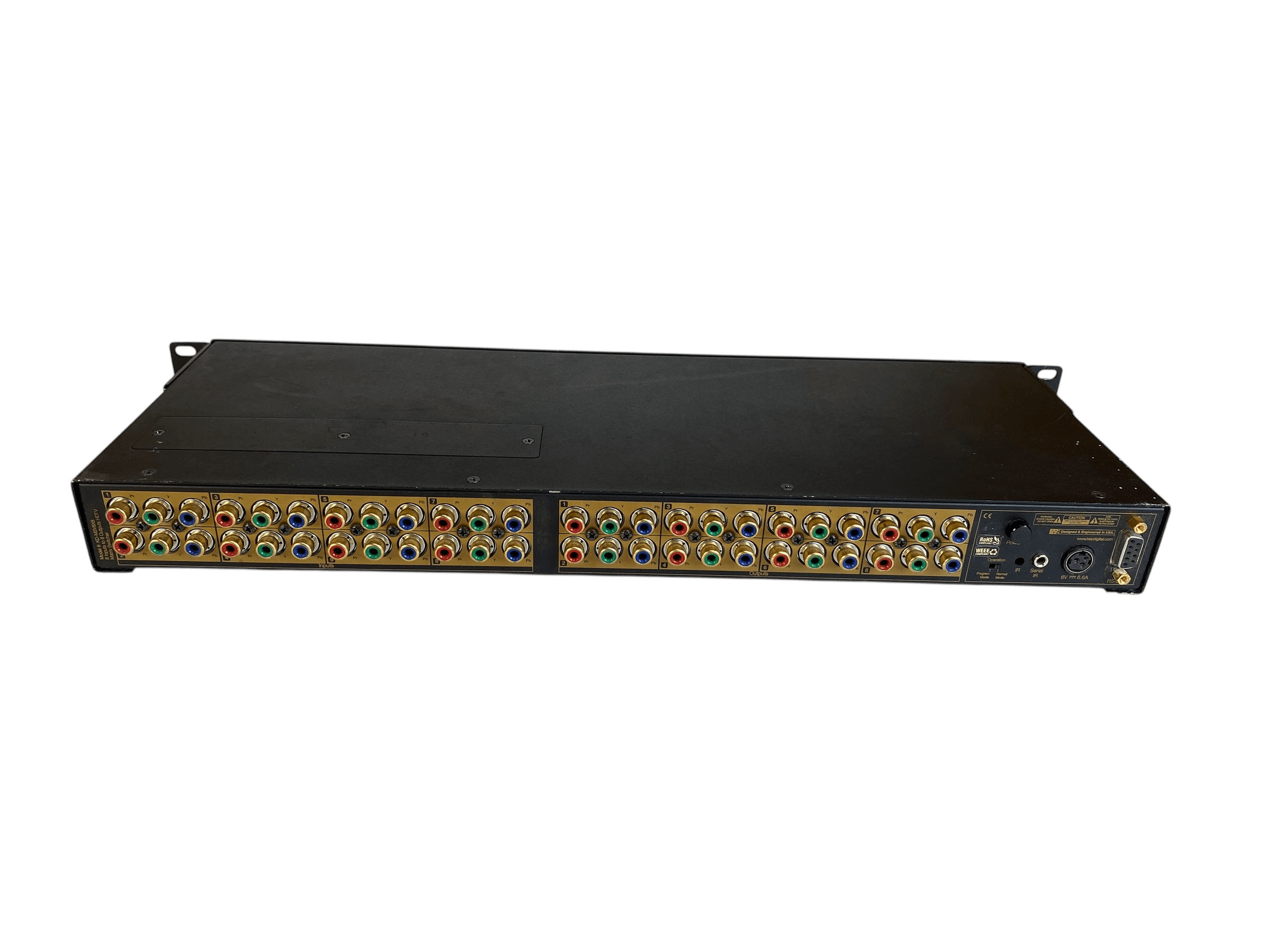

• Inputs/Outputs: 8 inputs and 8 outputs for component video (Y, Pb, Pr) with stereo audio.
• Video Support: Handles HDTV and SDTV signals.

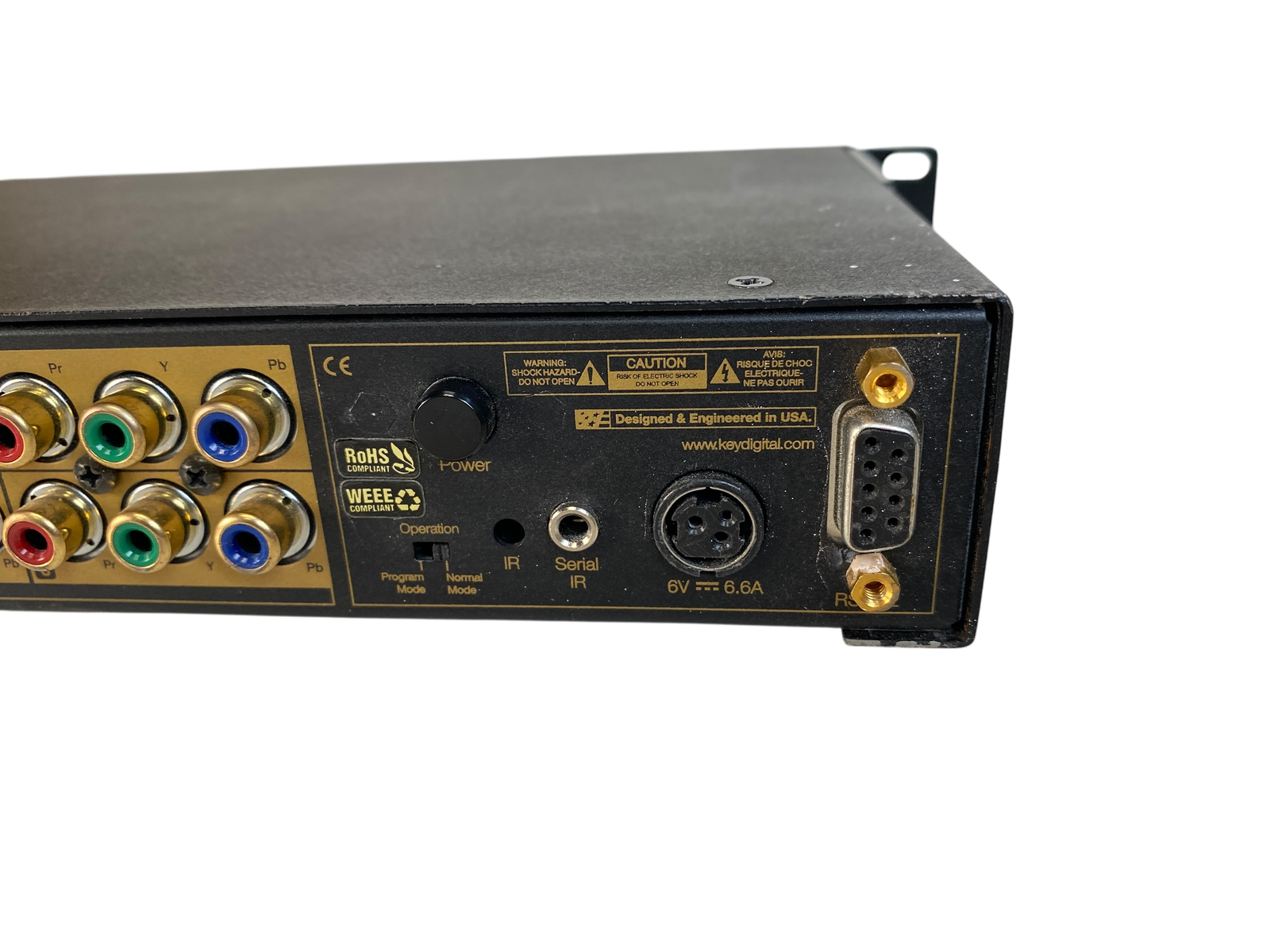

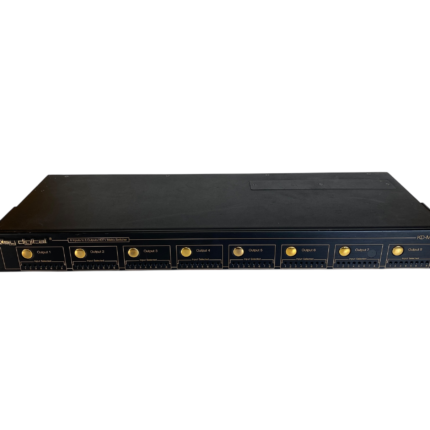

• Control: RS-232, IR, and front panel buttons; supports AMX Device Discovery.

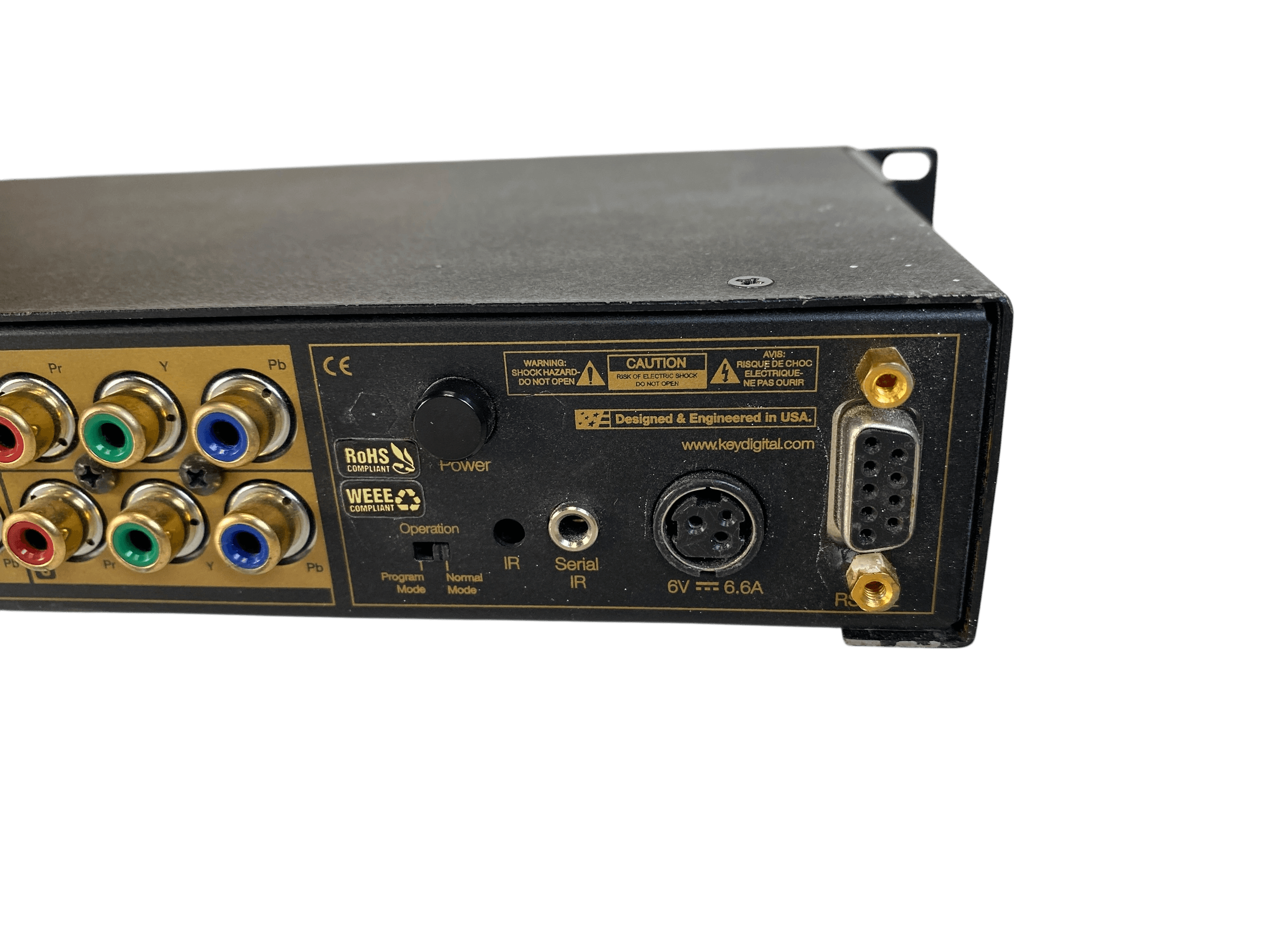

• Power: Requires external 6V, 6.6A power supply.
• Dimensions: Rack-mount design (exact size not specified without manual).

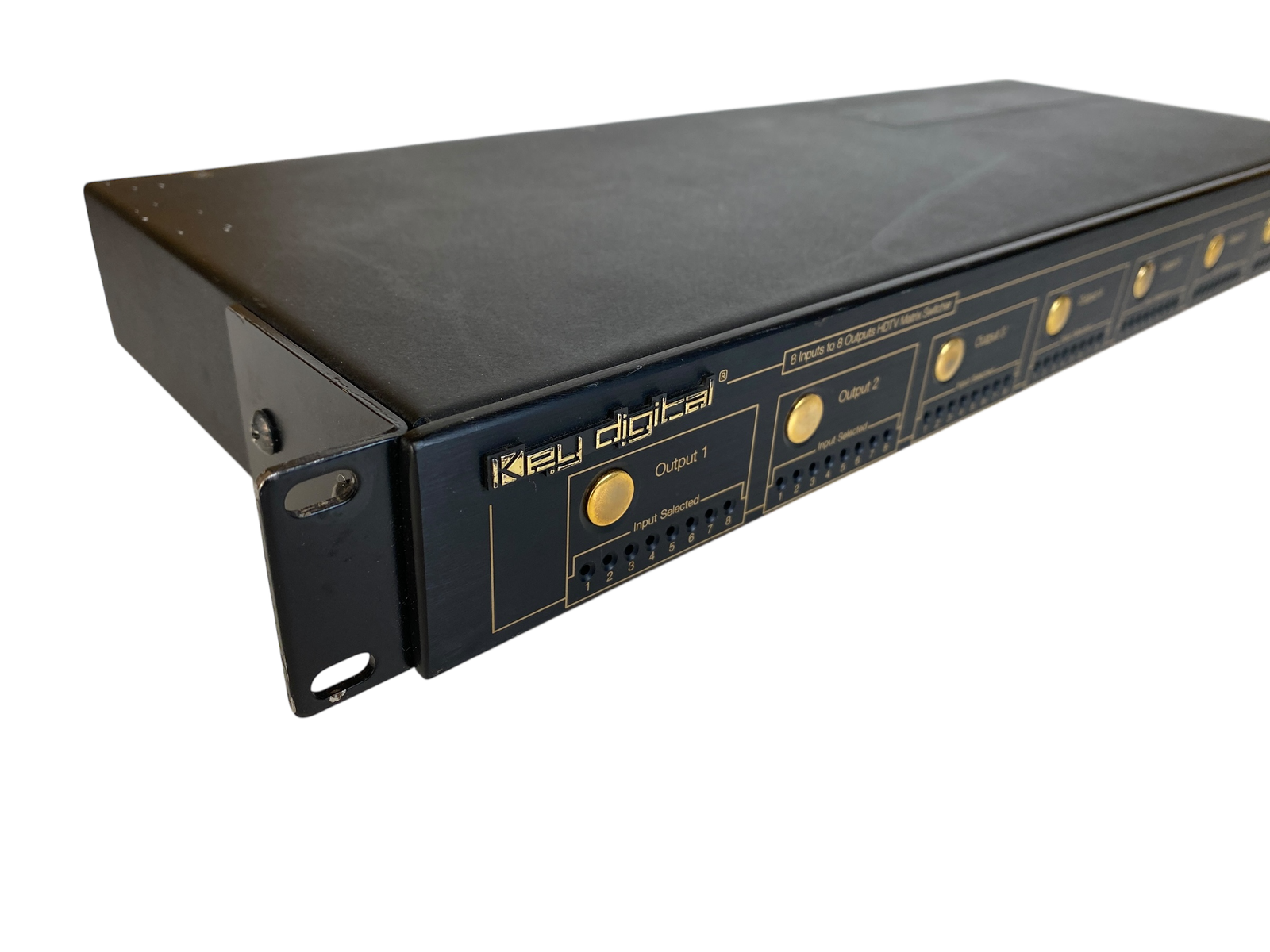

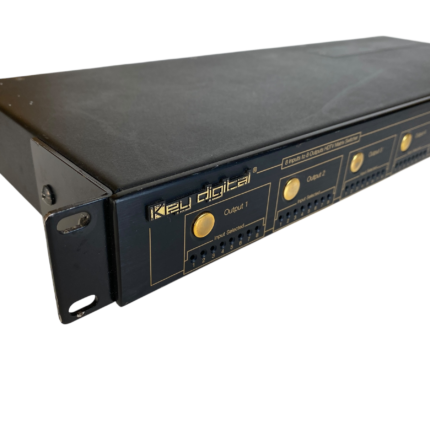

• Features: Full matrix switching (any input to any output), program mode switch, and optional firmware updates.
• Compliance: RoHS and WEEE compliant.
• Build: Durable construction, designed for professional use.
• Sound/Video: Maintains signal integrity; audio switching includes analog L/R or PCM.

Year of Manufacture: ~2007 (based on manual copyright).
