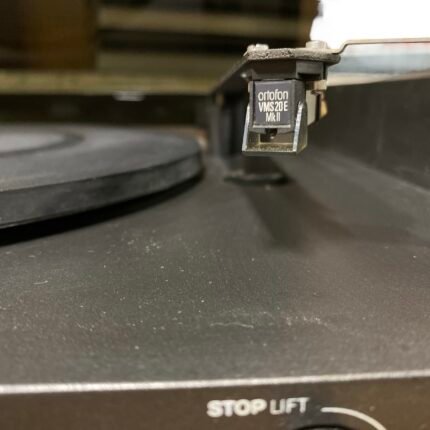

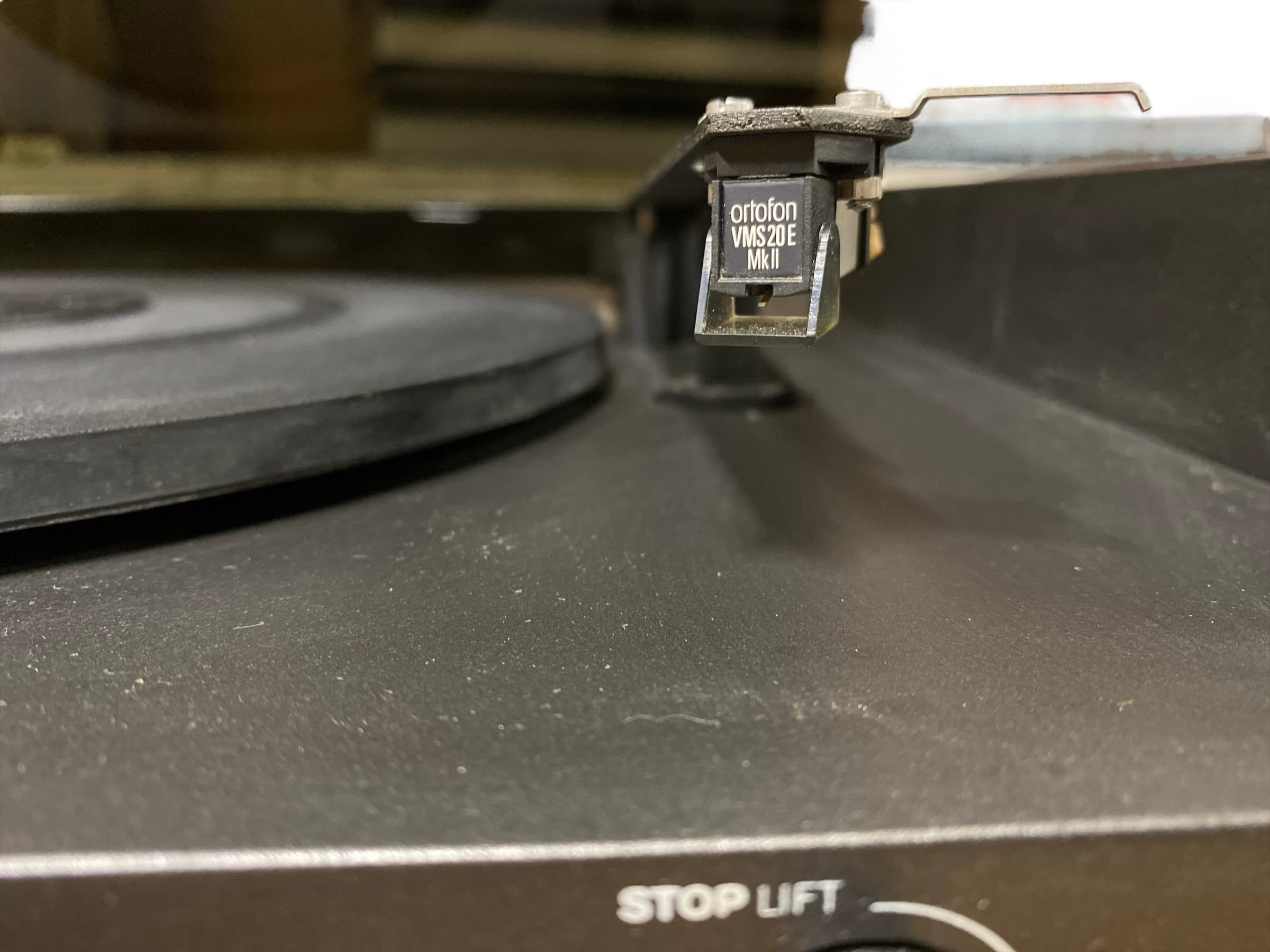

DYSTOPIAPen. Med den fineste av armene denne spilleren ble laget med – den flate. Vellydende nål (Ortofon VMS 20 E MK II), men bruken og det tidligere livet til denne er helt ukjent.
1 400 kr
1 120 kr eks. mva + 280 kr MVA (25%)
If you wish to use more than one phono pickup cartridge in the NAD 5120 turntable, you can purchase extra plug-in tonearms.
On each arm you can set balance, VTF and DVA (dynamic vibration absorber) frequency and damping.
Then you may quickly swap cartridges by unplugging one arm and plugging in another, with no readjustment needed (except perhaps for anti-skating and cueing height).
On the 5120 the counterweight is not mounted rigidly to the tonearm but rather suspended on a spring, forming a compliant assembly that is free to vibrate.
When correctly tuned its vibration matches and cancels the fundamental arm/cartridge resonance.
Drive system: precision neoprene belt drive
Motor: synchronous motor
Speeds: 33 and 45rpm
Speed accuracy: +-0.5%
Wow and flutter: 0.04% WRMS
Rumble: -70dB
Suspension system: sprung subchassis
Tonearm: flat or tubular static balance arm with dynamic vibration absorber
Effective length: 208mm
Effective mass: 6g
Overhang: 19.1mm
Offset angle: 26 degrees
Dynamic vibration absorber: spring suspended counterweight with viscous damping
Cartridge weight: 2 to 8g
Tracking force: 0 to 3g
Dimensions: 420 x 105 x 354mm
Weight: 5kg
