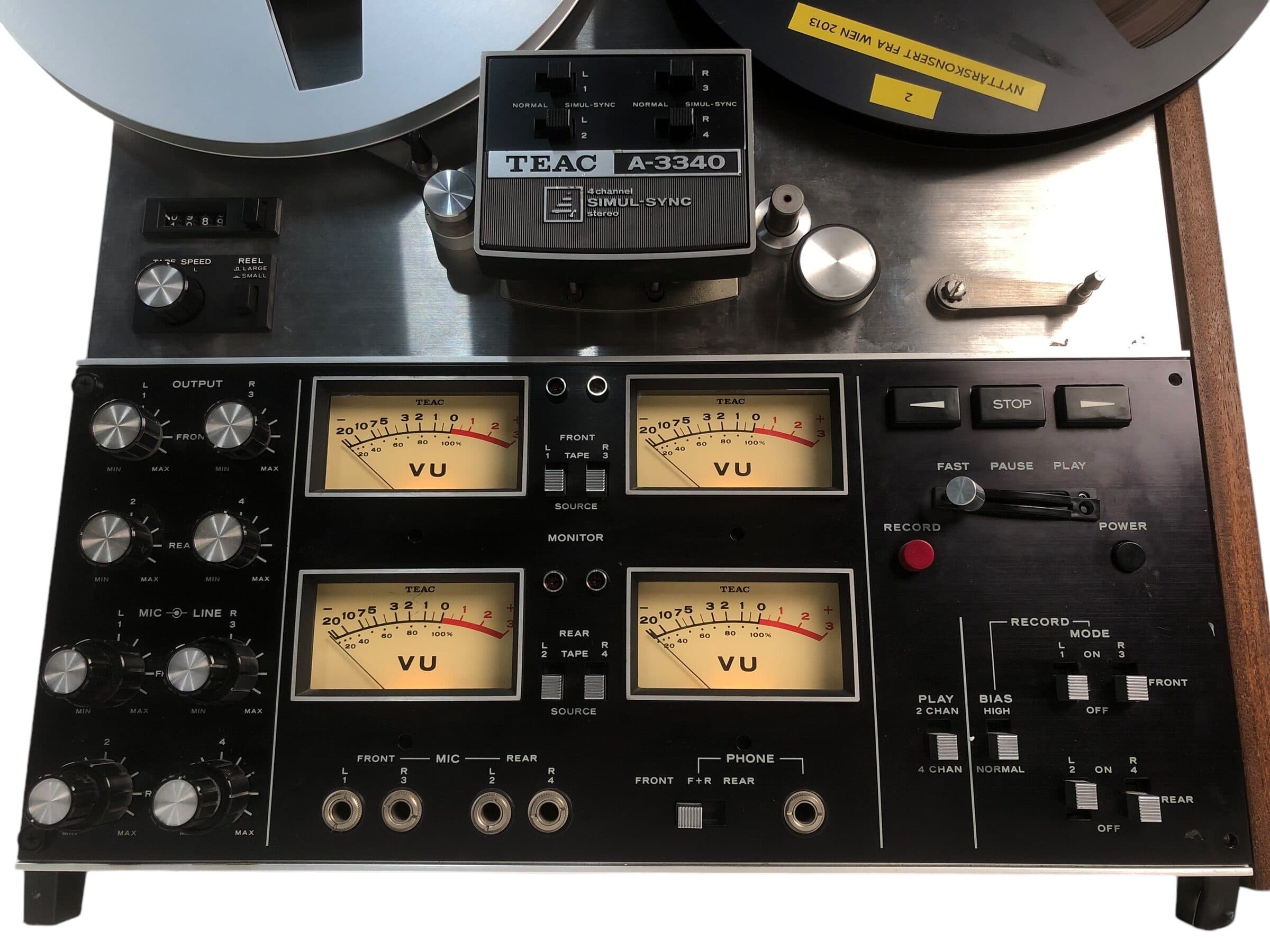

A-3340(1970s)

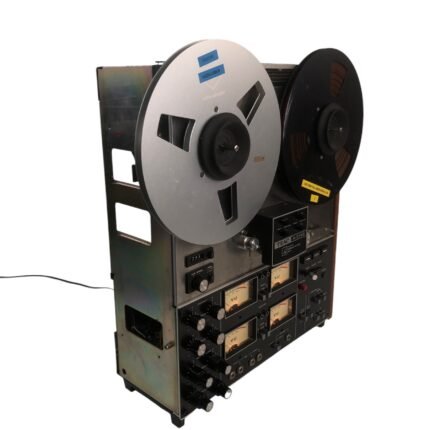

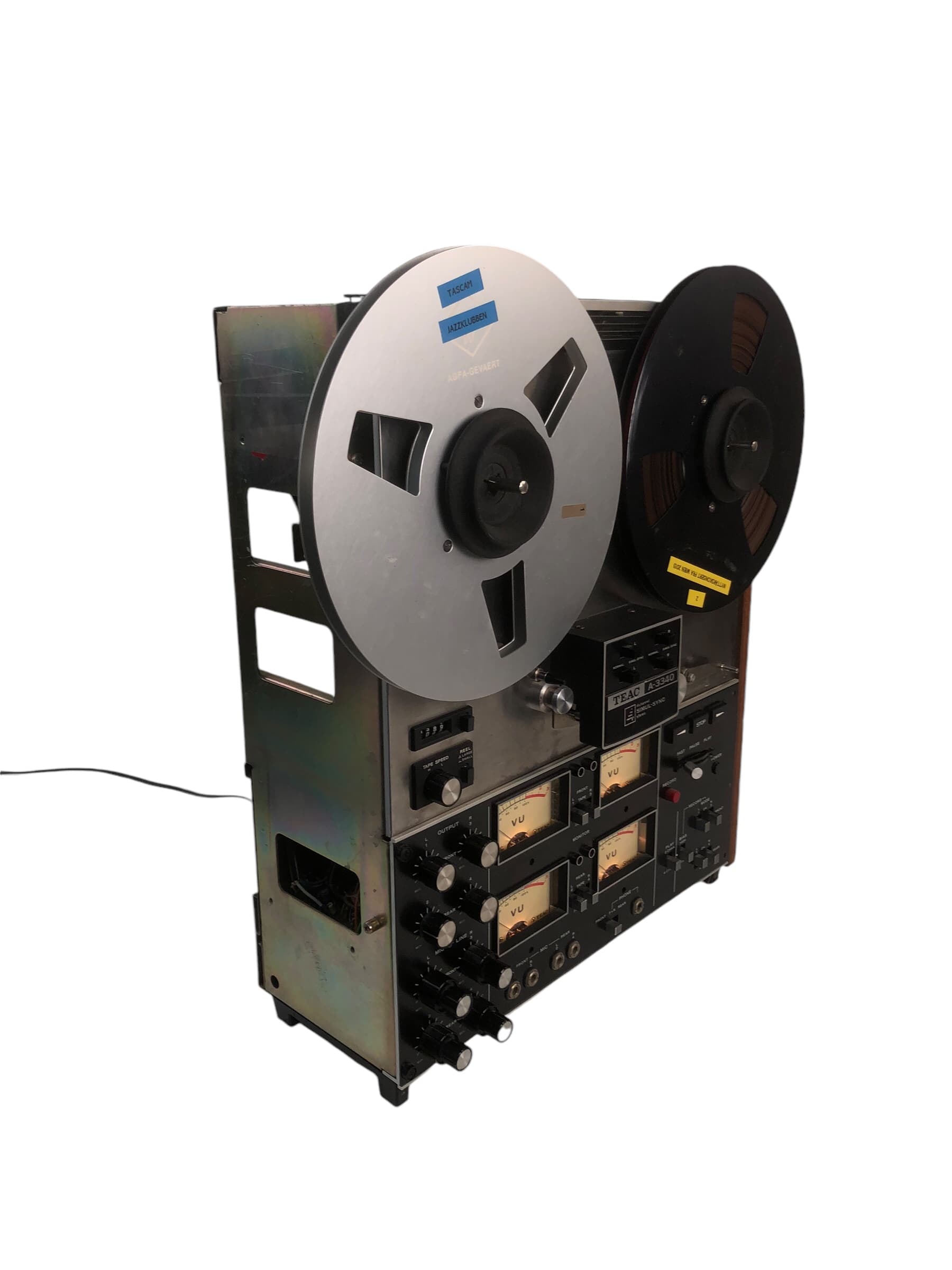

The TEAC A-3340 is a semi-professional tape deck capable of Simul-Sync recording, quadraphonic, stereophonic and monophonic recording and playback.

It offers operating speeds of 7-1/2 and 15 ips and will accept reels of 10-1/2 inches in diameter.

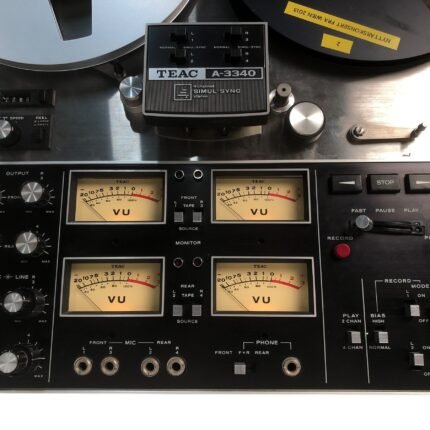

The Simul-Sync feature permits the recording of discrete but synchronized program material on all four tape tracks.

• Track system: 4-track, 4-channel, stereo/monaural/multi channel system
• Heads: 1 x record, 1 x playback, 1 x erase
• Reel size: up to 10.5 inch reel
• Tape speeds: 7 ¹⁄₂  15 ips
• Wow and flutter: 0.08% (15 ips)
• Frequency response: 30Hz to 22kHz (15 ips)
• Signal to Noise Ratio: 50dB
• Crosstalk: 46dB
• Weight: 22.5kg
